Split, join regions in the Logic Pro Audio Track Editor

You can split an audio region into segments in the Audio Track Editor, and move the segments so that they play back at a different point in time.

You can also join regions or region segments from audio recordings into a single region. Regions from audio Apple Loops, and audio regions that have been transposed can’t be joined.

To be joined, audio regions must be adjacent to each other on the same track. If you join segments of compressed audio files, the files are converted, by default, to PCM format (the file type is set in the Audio > General preferences pane).

Split an audio region

  • In the Logic Pro Audio Track Editor, select the Scissors tool, then click the point where you want to split the region.

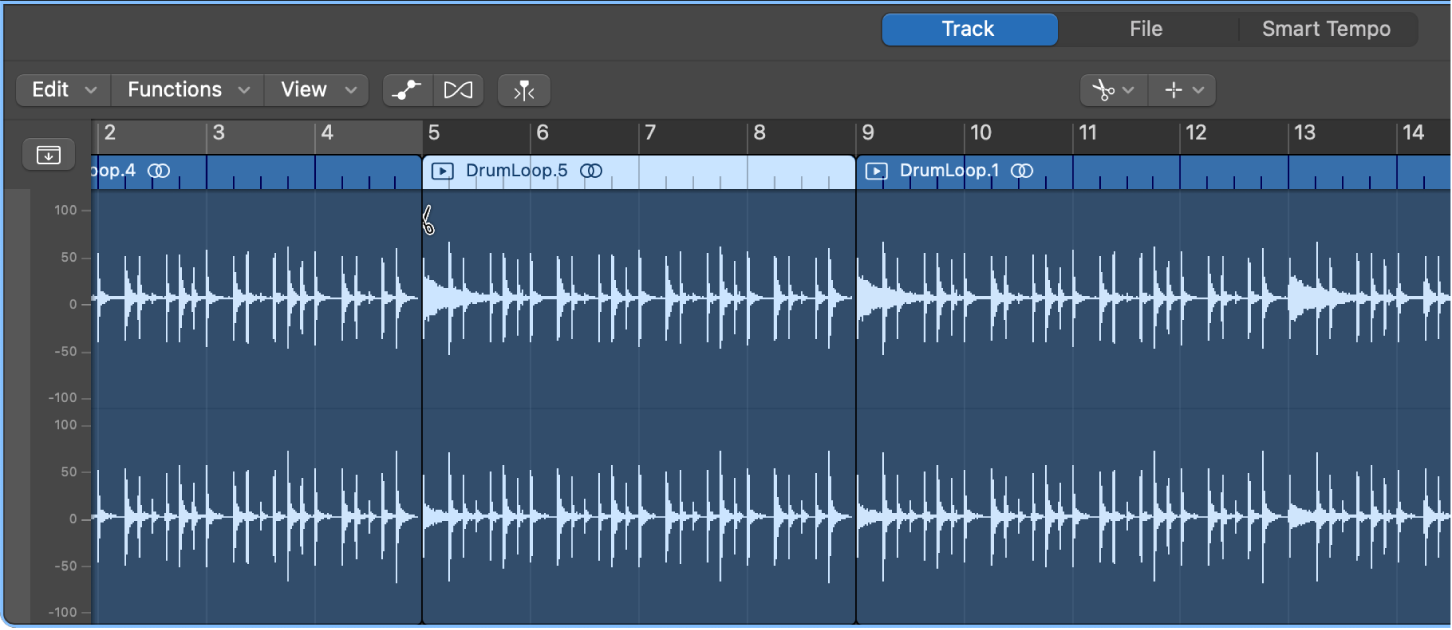

    Figure. Splitting region in the Audio Track Editor using the Scissors tool.

    You can scrub regions to find the point where you want to cut by dragging across the regions with the Scissors tool. You can also split regions by selecting them in the Tracks area, then selecting Edit > Split > Regions at Playhead.

Before moving or deleting a segment of a split audio region, click the region to select it.

Join regions or region segments

  1. In the Logic Pro Audio Track Editor, select the regions or region segments.

  2. Do one of the following:

    • Choose Edit > Bounce and Join > Join.

    • Select the Glue tool, then Shift-click the selected regions.
