Adjust panning for sends independently in Logic Pro

Sometimes you may want to adjust the stereo pan that a send is routing to an aux separately from the panning of the channel strip. For example, you may want a stereo channel strip to send to a surround aux, or you may be using sends to create a headphone mix and want separate pan positions for the headphone mix as for the main mix. By choosing Independent Pan for a send, you can adjust the pan type and position settings for the send independently from the pan type and position for the channel strip.

After you choose Independent Pan for a send, you can adjust the send’s panning by setting the send to Sends on Faders mode. In this mode, the fader controls the volume to the send, and the pan knob controls the pan type and position to the send. To learn more about panning and balance, see Set channel strip pan or balance positions.

Set Independent Pan mode for a send

  • In a Logic Pro channel strip, from the Send pop-up menu, choose Independent Pan.

    Figure. Independent Pan mode in Send pop-up menu.

Copy the current channel strip pan setting to a send

You can copy pan settings from a channel strip directly to a send using the Copy Pan to Send command. Using this command, you can quickly set the panning for a send without having to first enter Sends on Faders mode and make adjustments.

  • In a Logic Pro channel strip, from the Send pop-up menu, choose Copy Pan to Send.

    Figure. Copy Pan to Send command.

Note: Copy Pan to Send is available only in Independent Pan mode.

Set Sends on Faders mode for a send

In Logic Pro, do one of the following:

  • From the Send pop-up menu, choose Sends on Faders.

  • Control-click an aux track, then choose Sends on Faders from the shortcut menu.

  • Use the Sends on Faders key command.

  • Use the Sends on Faders pop-up menu in the Mixer menu bar:

    1. Click the Sends on Faders On/Off button in the Mixer menu bar

      Figure. Sends on Faders pop-up menu in the Mixer menu.

    2. Choose an effect return channel from the Sends on Faders pop-up menu.

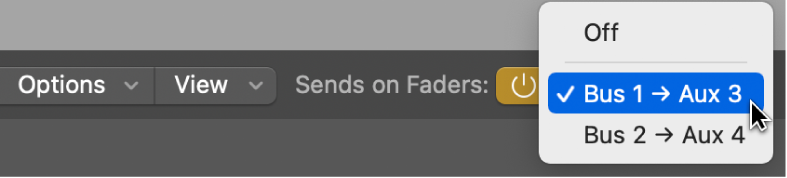

      Figure. Choosing an effects return channel from the Sends on Faders pop-up menu.

The color of the send slot, send knob, pan knob, and volume slider change to reflect that a send is in Sends on Faders mode.

The Sends on Faders pop-up menu is available only when Enable Complete Features is selected in Logic Pro > Preferences > Advanced.

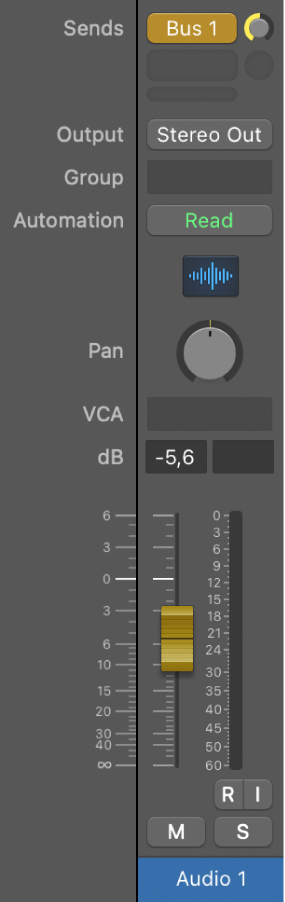

Figure. Channel Strip in Faders on Sends mode.

Copy the current channel strip fader volume to the send level

You can copy fader volume from a channel strip directly to a send using the Copy Fader to Send command. Using this command, you can quickly set the level for a send without having to first enter Sends on Faders mode and make adjustments.

  • In Logic Pro, from the Send pop-up menu, choose Copy Fader to Send.

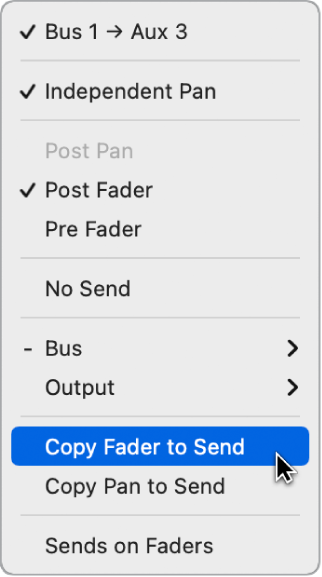

    Figure. Copy Fader to Send command.
