Multipressor output parameters in Logic Pro

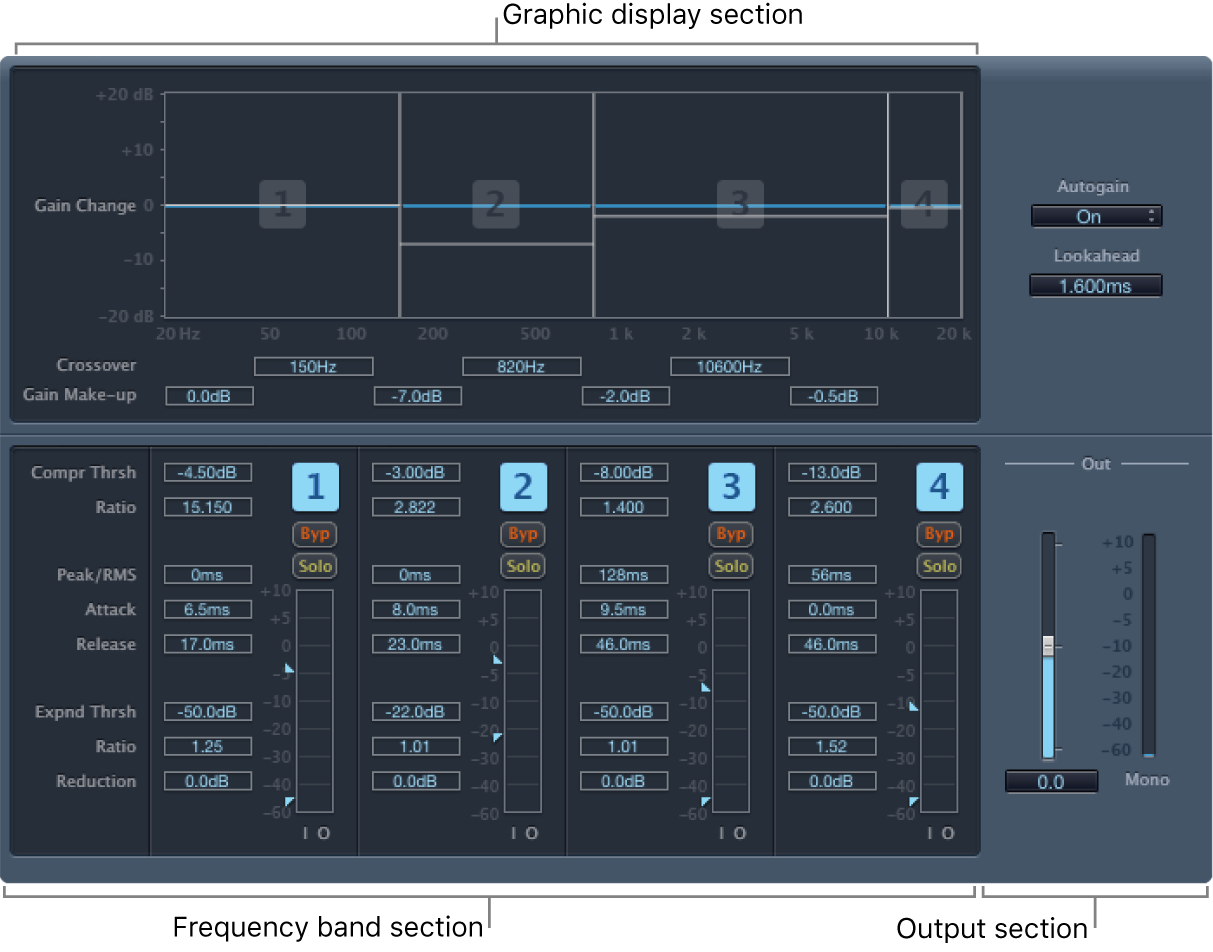

Multipressor parameters are grouped into three main areas: the graphic display in the upper section, the set of controls for each frequency band in the lower section, and the output parameters on the right.
Output parameters
Auto Gain pop-up menu: Turn on to reference the overall processing of the signal to 0 dB, making the output louder.
Lookahead value field: Set how far ahead the effect analyzes the incoming signal, allowing faster reactions to peak volumes.
Out slider and field: Set the overall gain at the Multipressor output.
Level meter: Shows the overall output level.
