Set the start and end points for a Logic Pro project
A project normally starts at position 1 1 1 1 (as shown in the LCD, in Bars mode or in Bars and Time mode). You can move the project start point to an earlier position, allowing upbeats or program change commands to be played before the first downbeat. You can also move the project end point; for example, to remove unused bars at the end of the project.
Set the project start point

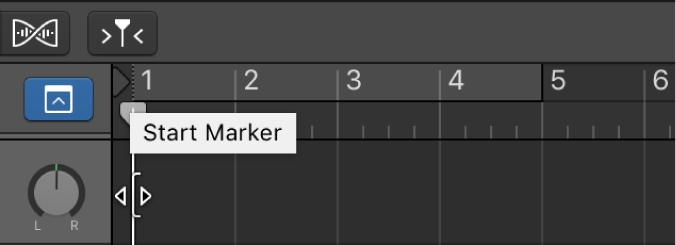

In Logic Pro, drag the Project Start marker in the ruler to the left or right.
Set the project end point
In Logic Pro, do one of the following:

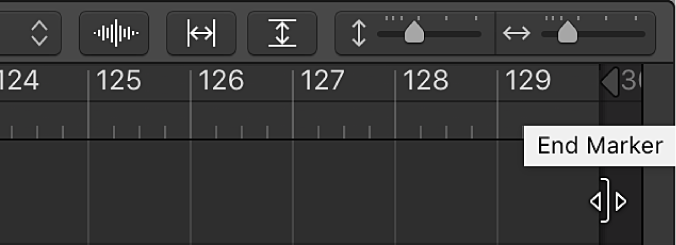

Drag the Project End marker in the ruler to the left or right.

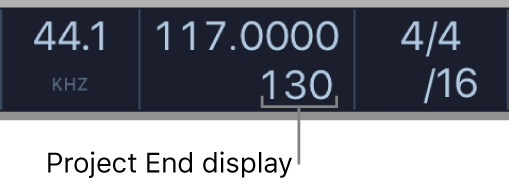

Set the value in the LCD’s numerical Project End display (by dragging or double-clicking the value).
Note: If the Project End display doesn’t appear in the LCD, Control-click the LCD and choose Customize Control Bar and Display in the shortcut menu. Select the Key Signature/Project End checkbox in the Customize Control Bar dialog.
During playback, a project stops when it reaches the Project End marker. When recording, the Project End marker moves to accommodate the end of the recording (if recording extends past the current position of the marker).
