MIDI Controllers preferences
MIDI Controllers preferences are only available when Additional Control Surfaces Options is selected in Advanced preferences.
The MIDI Controllers preference pane applies to USB MIDI controllers supported by Lua scripts. See Automatic assignment for USB MIDI controllers in Logic Pro for details on adding and using USB MIDI devices.
See the documentation for automatic assignment for USB MIDI controllers for more details.

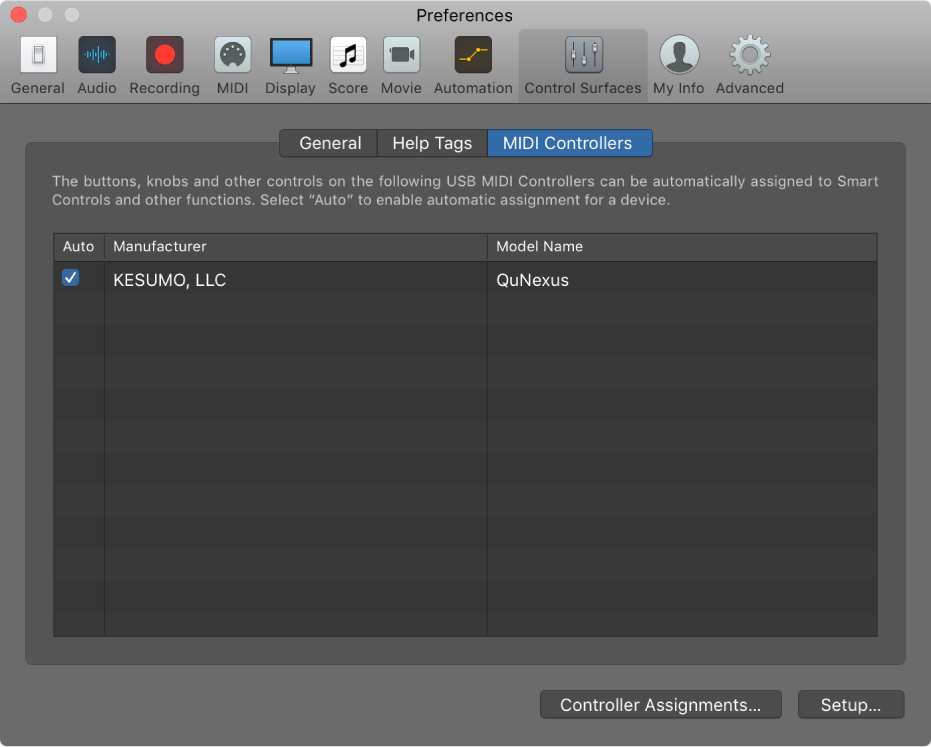

MIDI Controllers preferences
Auto checkbox: Enable to use automatic assignments for the corresponding USB MIDI controller. The controller must be connected and turned on.
Assignments for this device are created immediately, based on information in the Lua script. If a user-defined or -edited assignment for a control already exists, it is retained, and no additional assignment is created for this control.
The Lua script is started, enabling its optional MIDI In and MIDI Out processing.
When the Auto checkbox is disabled, Lua script assignments are removed (user-modified assignments are retained) and Lua script MIDI processing is stopped.
Note: The Auto checkbox state corresponds to the Auto Assign and No options shown in the dialog when the device is initially identified. The checkbox state is processed every time Logic is launched, or when the Bypass All Control Surfaces menu item is unchecked.
Manufacturer column: Displays the name of the controller manufacturer. This is automatically identified and shown for all USB MIDI devices that have a corresponding Lua script. Text is dimmed if the corresponding controller is offline.
Model Name column: Displays the name of the controller. This is automatically identified and shown for all USB MIDI devices that have a corresponding Lua script. Text is dimmed if the corresponding controller is offline.
Note: All Manufacturer and Model Name entries are removed when you click the Preferences > General > Notifications > Reset Warnings button. In this situation, you will see the No / Auto Assign dialog for all supported USB MIDI devices that are currently online.
Controller Assignments button: Click to open the Controller Assignments window. See Overview of controller assignments in Logic Pro.
Setup button: Click to open the Control Surfaces Setup window. See Overview of Control surface inspector in Logic Pro.
شكرًا على ملاحظاتك.
