Set the channel strip input format in Logic Pro

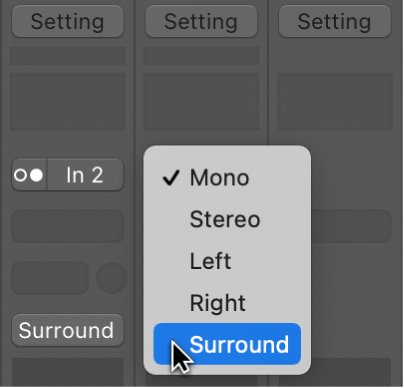

The channel input format determines the mono, stereo, or surround status of the channel strip.

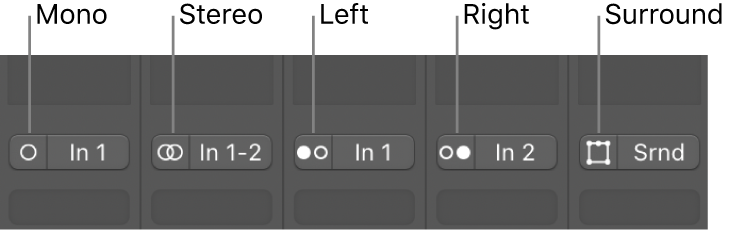

The symbol on the button indicates the current status as follows:
Mono: One circle represents a mono input format. The level meter shows a single column.
Stereo: Two interlocked circles represent a stereo input format. The level meter divides into two independent columns when a stereo input format is chosen.
Left: Two circles, with the left one filled, indicate a left channel input format. Only the left channel of a stereo audio file is played back. The level meter shows a single column.
Right: Two circles, with the right one filled, indicate a right channel input format. Only the right channel of a stereo audio file is played back. The level meter shows a single column.
Surround: Five circles indicate the surround channel input format. The level meter divides into multiple linked columns (the number matches the project surround format) when the surround input format is chosen.
For more information on channel strip controls, see Channel strip controls in Logic Pro.
Choose the channel strip input format
Click and hold the button directly below the EQ graphic on the channel strip, then choose an input format from the pop-up menu.
Logic Pro User Guide: Apple Books | PDF
Logic Pro Instruments: Apple Books | PDF
Logic Pro Effects: Apple Books | PDF
Thanks for your feedback.
