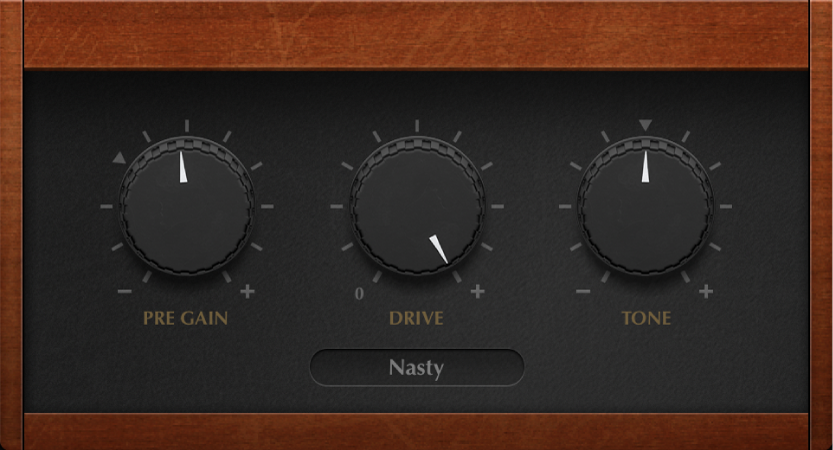

Distortion II in Logic Pro
Distortion II emulates the distortion circuit of a Hammond B3 organ. You can use it on musical instruments to recreate this classic effect or can use it creatively when designing new sounds.
Distortion II parameters
PreGain knob and field: Set the amount of gain applied to the input signal.
Drive knob and field: Set the amount of saturation applied to the signal.
Tone knob and field: Boosts the integrated high shelf filter gain both pre- and post-distortion, which results in a different tone.
Type pop-up menu: Choose the type of distortion.
Growl: Emulates a two-stage tube amplifier similar to the type found in a Leslie 122 speaker cabinet, which is often used with the Hammond B3 organ.
Bity: Emulates the sound of a bluesy (overdriven) guitar amp.
Nasty: Produces hard distortion, suitable for creating very aggressive sounds.
Class AB soft: Emulates a softer crossover distortion encountered in transistorized amplifiers when driving a higher load.
Class AB hard: Emulates a harder crossover distortion encountered in transistorized amplifiers when driving a higher load.
Crossover, in this case, refers to a switching between two matched transistors. In Class AB designs, both transistors remain on at all times, reducing the effect of hard switching between them.
Logic Pro User Guide: Apple Books | PDF
Logic Pro Instruments: Apple Books | PDF
Logic Pro Effects: Apple Books | PDF
Thanks for your feedback.
