Logic Pro Step Editor Overview

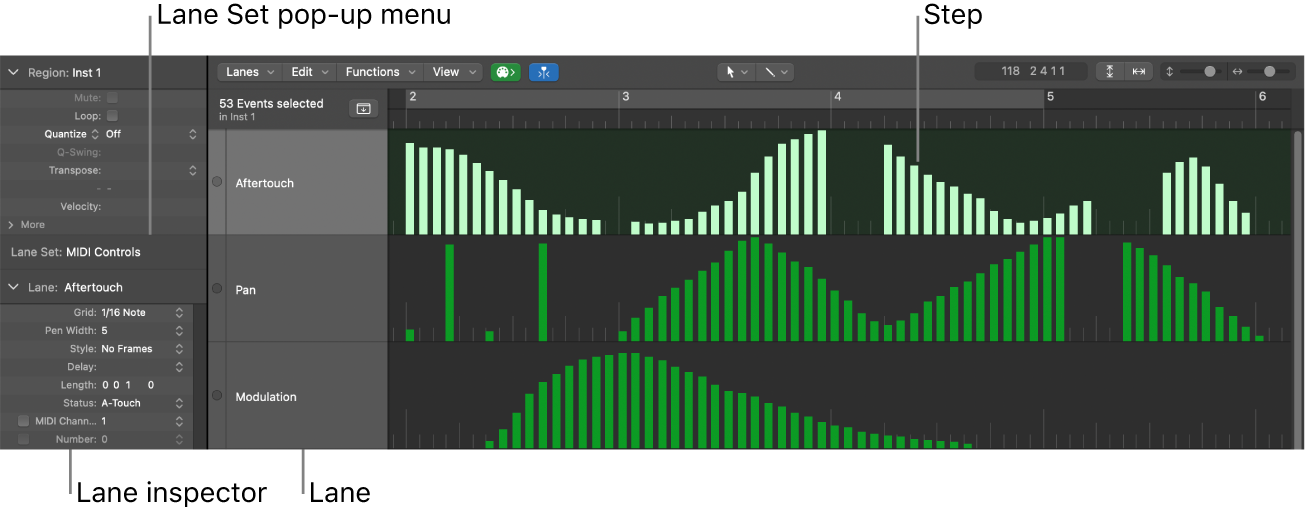

The Step Editor is a graphical editor that can be used to create or edit MIDI note and controller data. You can use the Step Editor to view and edit different MIDI event types, shown as vertical beams—or steps—along a timeline within a region.
The Step Editor is available when Enable Complete Features is selected in Logic Pro > Preferences > Advanced.
Step: Each beam, called a step, represents a MIDI event. The value of the event is denoted by the beam height, providing an at-a-glance view of one or more different events and their values. For more information, see Create steps in the Step Editor in Logic Pro and Change step values in the Step Editor in Logic Pro.
Lane: Each MIDI event type, be it a note or MIDI controller, is arranged from top to bottom in horizontal lanes much like the track lanes shown in the Tracks area. The type of event shown, and controlled, on each lane is freely configurable. You do this by setting Lane parameters (for each lane) in the inspector. For more information, see Overview of lane parameters in Logic Pro.
Lane inspector: Use to alter the settings of the selected lane. For more information, see Use the Lane inspector in Logic Pro.
Lane Set pop-up menu: You can save groups of lanes (several lanes that you have defined) as Lane Sets. You access these from the Lane Set pop-up menu in the inspector. For more information, see Use Lane Sets in the Step Editor in Logic Pro.
Open the Step Editor
In Logic Pro, select a MIDI region, then choose Window > Open Step Editor.
Logic Pro User Guide: Apple Books | PDF
Logic Pro Instruments: Apple Books | PDF
Logic Pro Effects: Apple Books | PDF
Thanks for your feedback.
