Pedalboard utility pedals in Logic Pro for Mac

This table describes the parameters of the Mixer and Splitter pedals.

Utility

Description

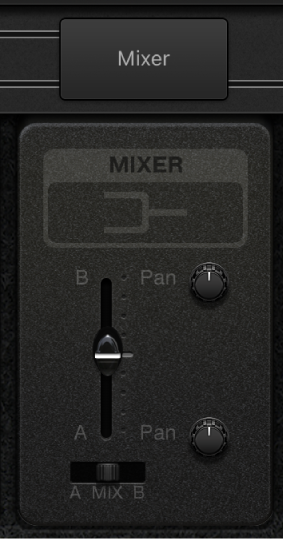

Figure. Mixer utility window.

The Mixer utility controls the level relationship between Bus A and Bus B signals. It can be inserted anywhere in the signal chain but is typically used at the end of the chain, shown at the extreme right of the Pedal area. See Use the Pedalboard Router for more information.

Can be used to switch the stereo or mono mode in the Router in mono-to-stereo instances.

Mix fader: Set the level or level balance, depending on the A/Mix/B switch position.
A/Mix/B switch: Solo the “A” signal, mix the “A” and “B” signals, or solo the “B” signal.
Pan A/B knobs: Set the pan position for each bus.

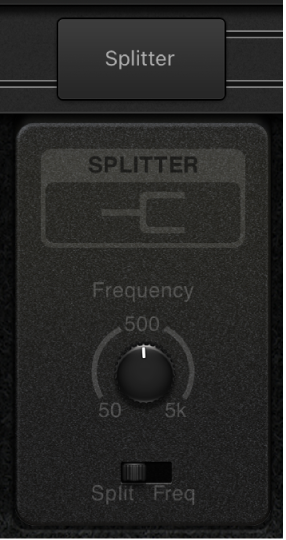

Figure. Splitter utility window.

The Splitter utility can be inserted anywhere in the signal chain. Splitter has two modes, set with the Split or Freq switch positions. See Use the Pedalboard Router for more information.

Frequency knob: Set the frequency used to split signals when Freq mode is active. The Frequency knob has no impact when Split mode is active.
Split/Freq mode switch: Split: The incoming signal is routed equally to both buses. Freq: Signals above the Frequency knob value are sent to Bus B. Signals below this value are sent to Bus A.

Download the guides:

Logic Pro User Guide: PDF

Logic Pro Instruments: PDF

Logic Pro Effects: PDF

Helpful?
