Modulate Sculpture LFOs in Logic Pro for Mac

Two modulation targets can be assigned per LFO. An optional via modulation can also be assigned.

The LFOs also feature a simple envelope generator, which is used to control the time it takes for the LFO modulation to fade in or fade out. At its center position, which is accessed by clicking the middle mark, the modulation intensity is static—in other words, no fade-in or fade-out occurs.

LFO target and source parameters

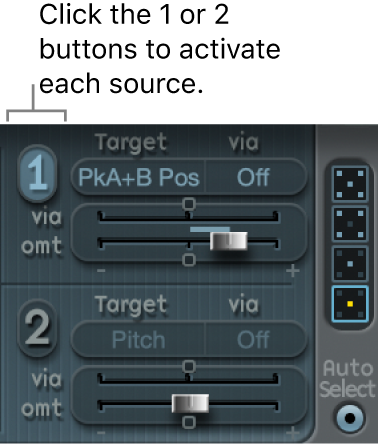

LFO 1/2 On/Off buttons: Turn each LFO on or off, independently.
Modulation Target pop-up menus: Choose the modulation targets.
Via source pop-up menus: Choose (or turn off) the via sources that control the modulation scaling for each LFO.
Amt sliders: Move to set the modulation amount (when the incoming via signal is 0)— for example, when the modulation wheel is at its minimum position.
In cases where the via source is set to off, only one amount slider is visible (the via amount slider is hidden). In cases where any via source other than off is selected, there are two sliders.
Via amount sliders: Set the maximum via modulation amount, such as when the Modulation wheel is at the maximum position, for example.

Set the LFO modulation fade time in Sculpture

In Logic Pro, do the following:

To fade in the modulation: Rotate the Envelope knob to a positive value.
The higher the value, the longer the delay time.
To fade out the modulation, rotate the Envelope knob to a negative value.
The farther to the left the knob is positioned, the shorter the fade-out time.

Set up a delayed vibrato in Sculpture

LFO envelopes are most often used for delayed vibrato—many instrumentalists and singers intonate longer notes this way.

In Logic Pro, set the LFO Envelope knob toward the right (Delay) and choose pitch as the target.
Set a slight modulation intensity.
Select an LFO Rate of 5 Hz.
Choose the triangular wave as the LFO waveform.

Tip: Chaotic and fast modulations of pitch by an LFO source—with a delayed Sample&Hold waveform, a high Rate, and short fade-out—are ideal for emulating the attack phase of brass instruments.

Download the guides:

Logic Pro User Guide: PDF

Logic Pro Instruments: PDF

Logic Pro Effects: PDF

Control Surfaces Support Guide: PDF

কাজে লেগেছে?

Logic Pro User Guide for Mac

Modulate Sculpture LFOs in Logic Pro for Mac

LFO target and source parameters

Set the LFO modulation fade time in Sculpture

Set up a delayed vibrato in Sculpture
