Dolby Atmos mixing workflows in Logic Pro for Mac

Mixing in Dolby Atmos can require additional steps. Here are some tips to help you optimize your workflow for Dolby Atmos.

Automation

All the parameters of the Surround Panner, Surround Balancer, and 3D Object Panner can be automated to move signals around in space. The corresponding parameters of those pan controls are listed in the Main submenu of the Automation Parameter pop-up menu.

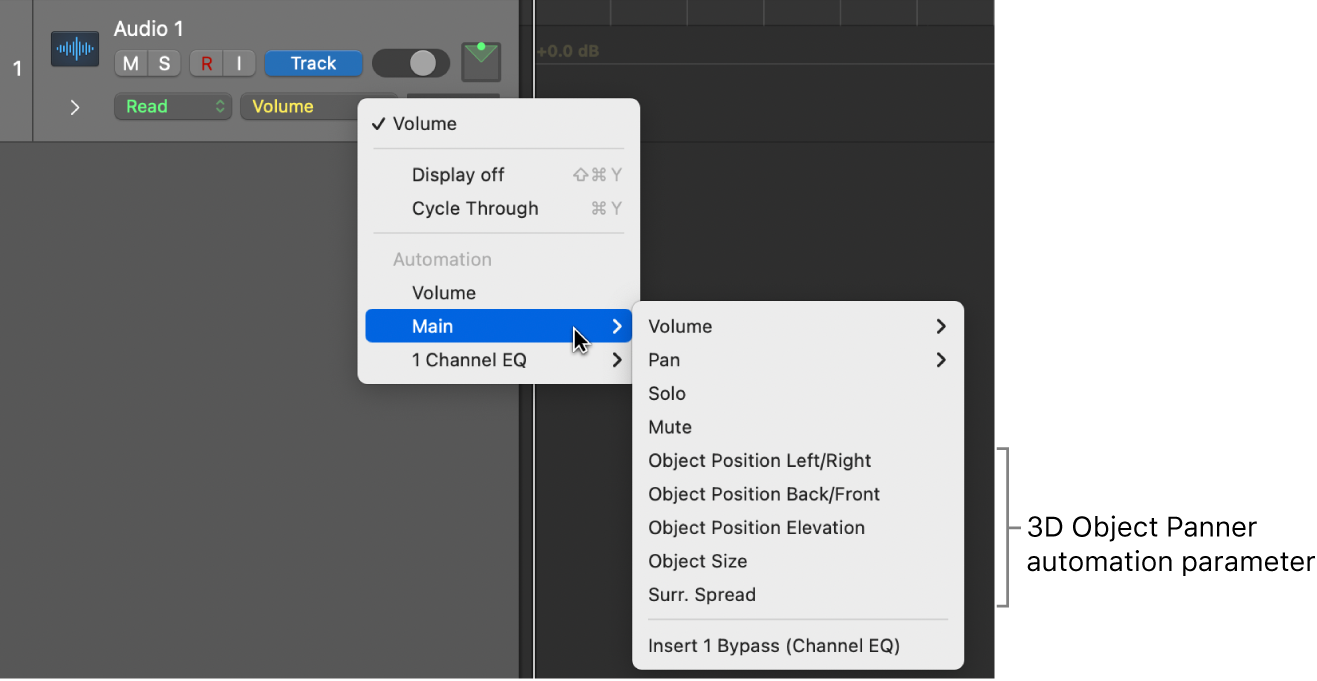

Figure. Automation parameters.

VCA groups

Creating separate VCA groups for bed tracks and object tracks is an easy way to handle your project’s levels globally. See Use VCA groups.

Use an audio subgroup as an object track

You can’t route multiple tracks to the same 3D object (for example, to use the same pan automation for multiple tracks). Instead, you have to do the following:

  1. Route these tracks to a bus.

  2. Create an aux track with that bus as input to create an audio subgroup.

  3. On the aux track, select 3D Object Panner from its Output slot to turn it into an object track.

Route object tracks to the LFE channel

You can use the LFE Level slider in the Surround Panner of a bed track to send its signal to the LFE output. The 3D Object Panner of an object track doesn’t have an LFE level control. To send the signal of an object track to the LFE output, follow these steps:

  1. Create an aux send on the object track, then send that signal to an aux track.

  2. Click the Output slot on the aux track and choose Surround to make it a bed track.

  3. Insert the Channel EQ plug-in on the aux track, then use its lowpass filter to roll off everything above 120 Hz.

  4. Double-click the Surround Panner control on the aux track to open the Surround Panner window, then click on each speaker icon to turn off those channels.

  5. In the Surround Panner window, set the LFE Level slider to 0 dB.

  6. Adjust the volume fader on the aux track based on how much of that (object track) signal you want to send to the LFE channel of your Dolby Atmos mix.

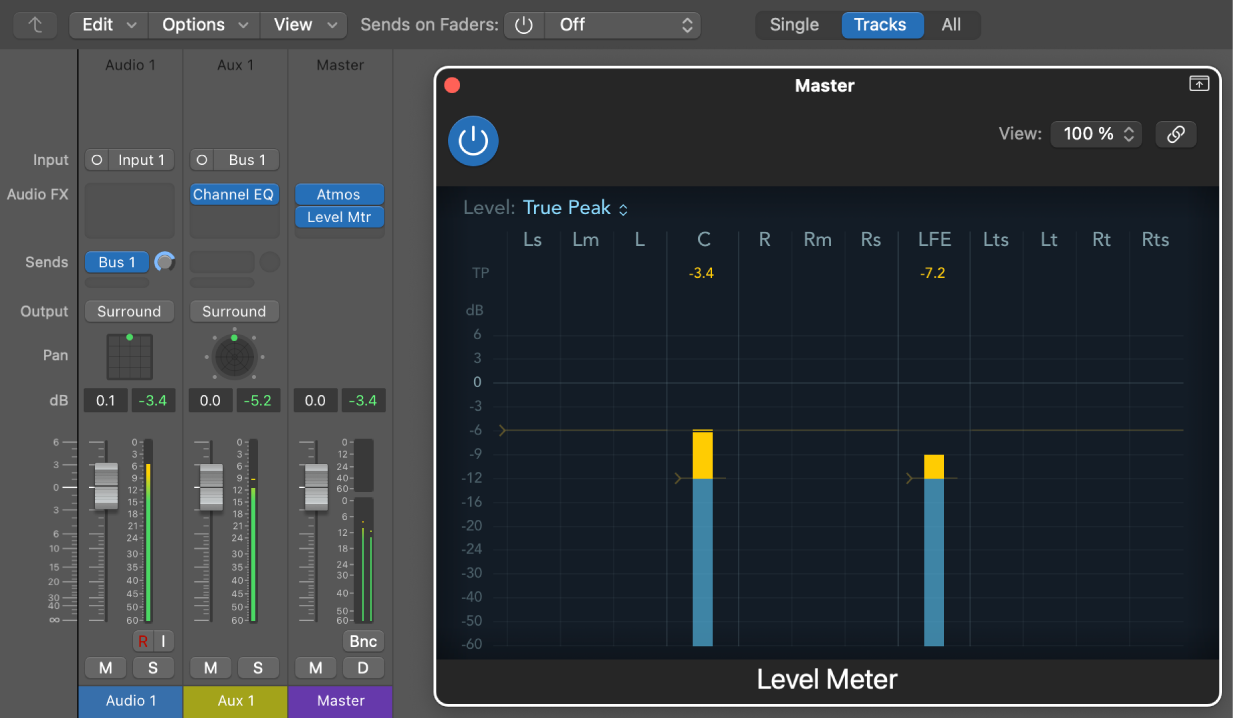

Figure. Routing an object track to the LFE channel.
