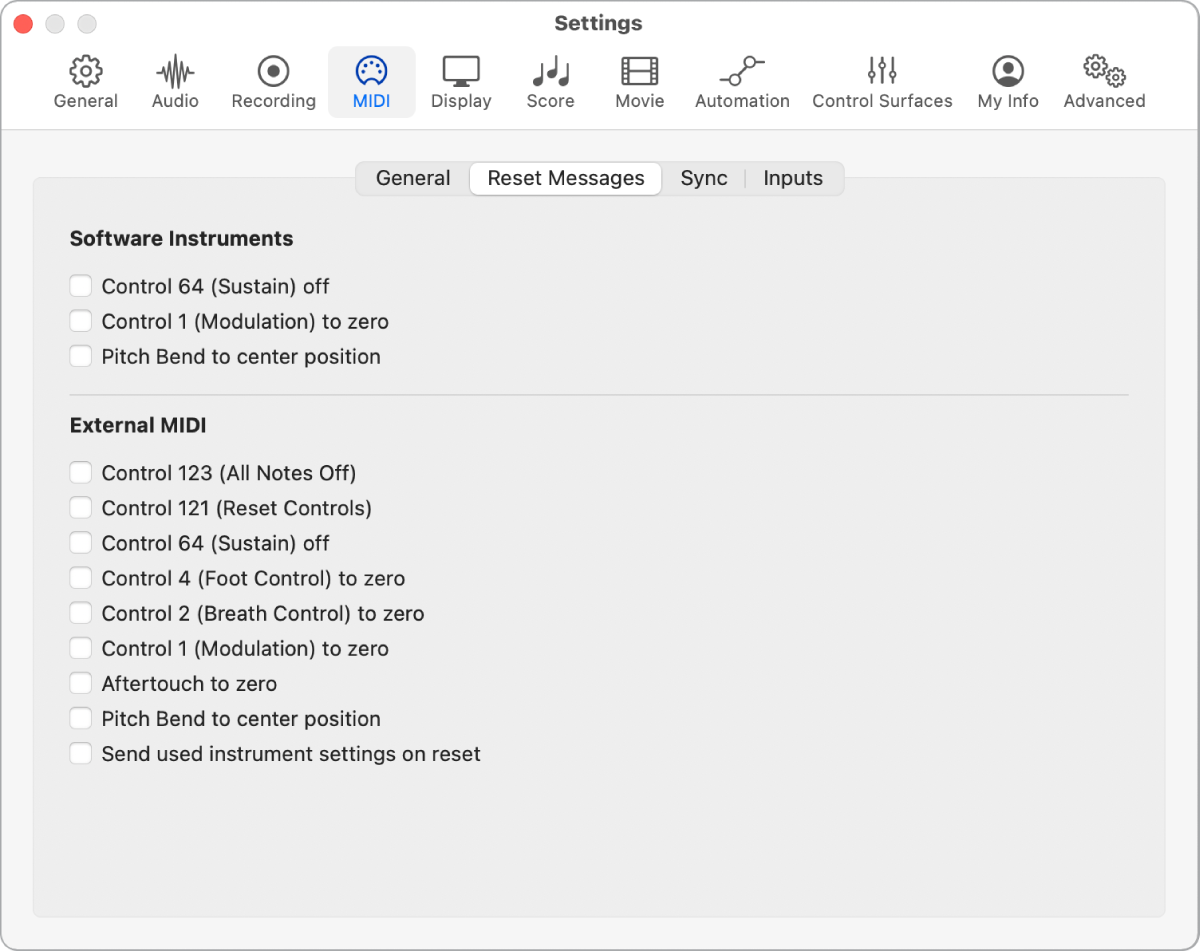

Reset Messages settings in Logic Pro for Mac

When Enable Complete Features is selected in Advanced settings, Reset Messages are available.

These settings are included for compatibility with older MIDI hardware. For selected controller types, a reset message is sent to all MIDI outputs. This reset message is sent on cycle jumps and when playback begins. However, Logic Pro for Mac handles MIDI reset messages automatically and intelligently, so you should generally make sure that all of these options are unselected—which they are, by default.

Control 64 (Sustain) off checkbox: Sends a Control 64 off (Sustain) message to all software instruments on cycle jumps and when playback begins.
Control 1 (Modulation) to zero checkbox: Sends a set Control 1 (Modulation) to zero message to all software instruments on cycle jumps and when playback begins.
Pitch Bend to center position checkbox: Sends a Pitch Bend to center position message to all software instruments on cycle jumps and when playback begins.
Control 123 (All Notes Off) checkbox: Sends a Control 123 (All Notes Off) message to all external MIDI instruments on cycle jumps and when playback begins.
Control 121 (Reset Controls) checkbox: Sends a Control 121(Reset Controls) message to all external MIDI instruments on cycle jumps and when playback begins.
Control 64 (Sustain) off checkbox: Sends a Control 64 off (Sustain) message to all external MIDI instruments on cycle jumps and when playback begins.
Control 4 (Foot Control) to zero checkbox: Sends a Control 4 (Foot Control) to zero message to all external MIDI instruments on cycle jumps and when playback begins.
Control 2 (Breath Control) to zero checkbox: Sends a Control 2 (Breath Control) to zero message to all external MIDI instruments on cycle jumps and when playback begins.
Control 1 (Modulation) to zero checkbox: Sends a Control 1 (Modulation) to zero message to all external MIDI instruments on cycle jumps and when playback begins.
Aftertouch to zero checkbox: Sends a Aftertouch to zero message to all external MIDI instruments on cycle jumps and when playback begins.
Pitch Bend to center position checkbox: Sends a Pitch Bend to center position message to all external MIDI instruments on cycle jumps and when playback begins.
Send used instrument settings on reset checkbox: Sends used instrument settings to all external MIDI instruments on cycle jumps and when playback begins.
