Spirals generator in Motion

This generator creates a repeating circular spiral pattern.

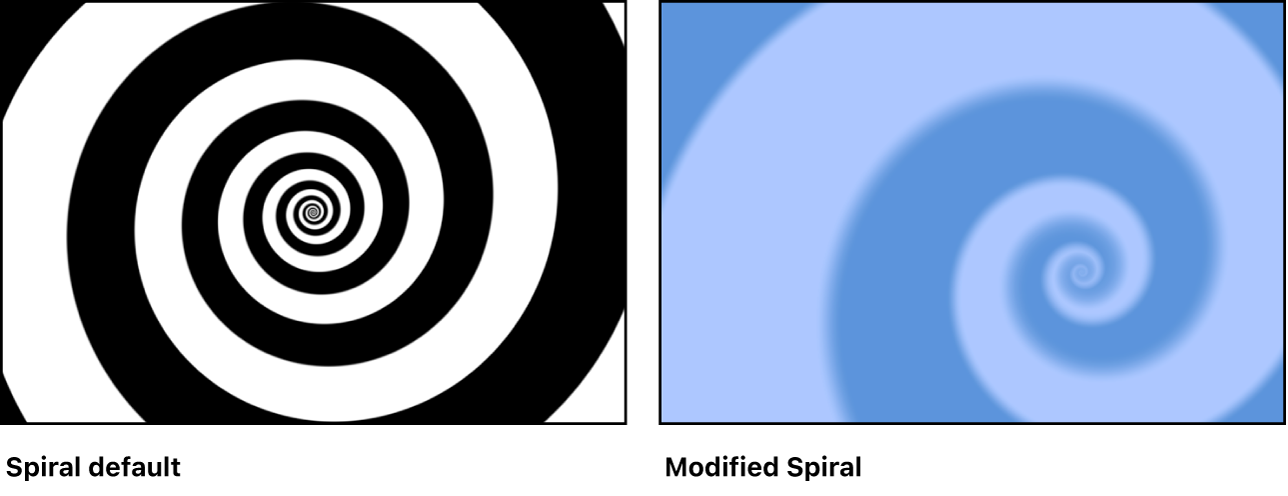

Canvas showing Spirals generator with a variety of settings

Adjust this generator using the controls in the Generator Inspector:

  • Type: A pop-up menu that specifies whether a modern or classic spiral is created. There are two menu items:

    • Modern (Linear): Creates a modern spiral pattern, with the color swirls evenly spaced as they move toward the center of the spiral.

      Canvas showing Spirals generator, with Type set to Modern

    • Classic (Exponential): Creates a classic spiral pattern with color swirls becoming thinner as they move toward the center of the spiral.

      Canvas showing spiral generator, with Type set to Classic

  • Center: Value sliders that set the center point of the generator in the canvas. The left value slider represents X position; the right value slider represents Y position. To access individual X and Y controls, click the disclosure triangle. (You can also use the Adjust Item tool to modify this parameter with onscreen controls. See Modify or animate a generator.)

  • Color Type: A pop-up menu that specifies whether the spirals are two-color or a gradient fill.

    • 2 Color: Creates two-color spirals. When 2 Color is selected from the Color Type pop-up menu, the Color 1, Color 2, and Contrast parameters become available.

    • Gradient: Lets you add colors to the spiral, creating soft transitions between colors. Spiral colors are determined by the Gradient editor. You can create a custom gradient or apply a preset gradient to the spirals. For more information on using gradient editors, see Modify gradient tags.

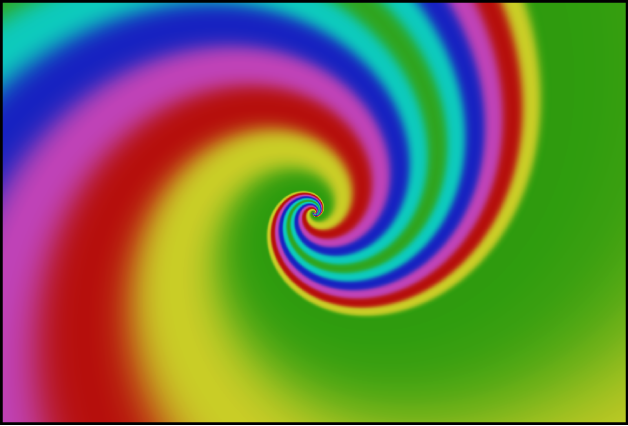

      Canvas showing spiral generator, with Color Type set to Gradient

  • Color 1: Color controls (available when Color Type is set to 2 Color) that set the first color of the spiral.

  • Color 2: Color controls (available when Color Type is set to 2 Color) that set the second color of the spiral.

  • Gradient: Gradient controls (available when Color Type is set to Gradient) that allow you to pick a gradient from the Library.

  • Scale: A slider (available when Type is set to Modern) that determines the size of the spiral arms.

  • Tightness: A slider (available when Type is set to Classic) that determines the curl of the spiral. The lower the Tightness value, the looser the spiral.

  • Contrast: A slider that controls the transition between the two colors. A value of 1 creates the highest contrast between colors; lower values create less contrast, softening the spiral. The Contrast parameter is not available when Gradient is chosen from the Color Type pop-up menu.

  • Rotation: A dial that rotates the spiral around its center. (Animate the Rotation parameter to create a hypnotic effect.)

  • Publish OSC: A checkbox that, when selected, ensures that if this generator is sent to Final Cut Pro as part of a template, the onscreen controls are accessible in Final Cut Pro. For more information about publishing onscreen controls and other parameters, see Intro to Final Cut Pro templates.
