Show and modify keyframes in the Motion Timeline

You can move or delete keyframes that are displayed in the Timeline. You can also display the animation curve for a selected keyframe, using the Keyframe Editor.

For more information on the Keyframe Editor, see Intro to keyframing.

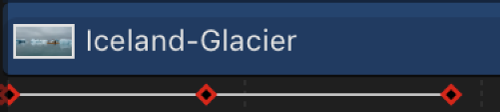

Display keyframes in the Timeline track area

In the upper-right corner of the Timeline in Motion, click the Show/Hide Keyframes button.
When the Show/Hide Keyframes button is highlighted, keyframes appear below objects in the track area.

Note: Don’t confuse the Show/Hide Keyframes button with the Show/Hide Keyframe Editor button, located on the right side of the timing toolbar. The former turns the display of keyframes in the Timeline track area on and off; the latter expands and collapses the Keyframe Editor in the Timing pane.

Move a keyframe’s position in time

Moving a keyframe in the Timeline modifies the keyframe’s position in time (but not its value).

In the Timeline in Motion, drag the keyframe to the left or right.
When selected, the keyframe appears white.

Change a keyframe’s value

To change a keyframe’s value (as opposed to its position in time), do one of the following in Motion:

Control-click the keyframe, choose the parameter to adjust from the shortcut menu, enter a new value, then press Return.
Use the Keyframe Editor, which lets you change both the value and interpolation of the keyframe.

Copy and paste keyframes

In the Timeline in Motion, select the object that contains the keyframes you want to copy.
In the Timeline track area, select or Shift-select keyframes, then choose Edit > Copy (or press Command-C).
In the Timeline track area, select the target object for the copied keyframes, then choose Edit > Paste (or press Command-V).

Delete a keyframe or group of selected keyframes

In the Timeline track area, select the keyframe or keyframes to delete, then do one of the following:
- Press Delete.
- Control-click a selected keyframe, then choose Delete Keyframes from the shortcut menu.

Delete all keyframes

In the Timeline track area in Motion, Control-click a keyframe, then choose Delete All Keyframes from the shortcut menu.

Display an animation curve in the Keyframe Editor

Control-click a keyframe on a track in Motion, then choose Show in Keyframe Editor from the shortcut menu.
The Keyframe Editor appears underneath the Timeline, showing the animation curve and a new, untitled curve set.
