Compressor output parameters in Logic Pro

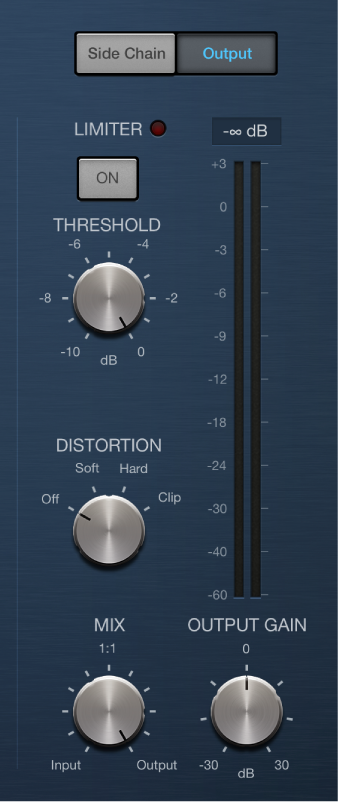

Compressor output parameters are shown to the right when the Output button is active.
Compressor output parameters
Limiter button: Turn the integrated limiter on or off. Limiting prevents the output of Compressor from exceeding the threshold value.
Limiter Threshold knob and field: Set the threshold level for the limiter.
Distortion knob: Choose whether to apply clipping above 0 dB, and the type of clipping. Soft, Hard, and Clip reduce the signal around the 0 dB line in different ways, resulting in a smoothed or squared off distortion of the signal peaks. Experiment with these options
Soft: Rounds off the signal as it approaches the 0 dB level, reducing the overall signal, rather than abruptly cutting it off.
Hard Emulates a transistor effect that abruptly cuts off signals above 0 dB.
Clip: Cuts off the signal at the 0 dB mark, but can be more punchy than the Hard setting, depending on the input material.
Mix knob and field: Set the balance between dry (source) and wet (effect) signals. This enables you to either reduce signal peaks (dry), or to increase the level of softer signals (wet).
Download the guides:
Logic Pro User Guide: Apple Books | PDF
Logic Pro Instruments: Apple Books | PDF
Logic Pro Effects: Apple Books | PDF
Hartelijk dank voor uw feedback.
