Logic Pro Rotor Cabinet effect mic processing controls
The Rotor Cabinet effect provides the following microphone processing parameters.

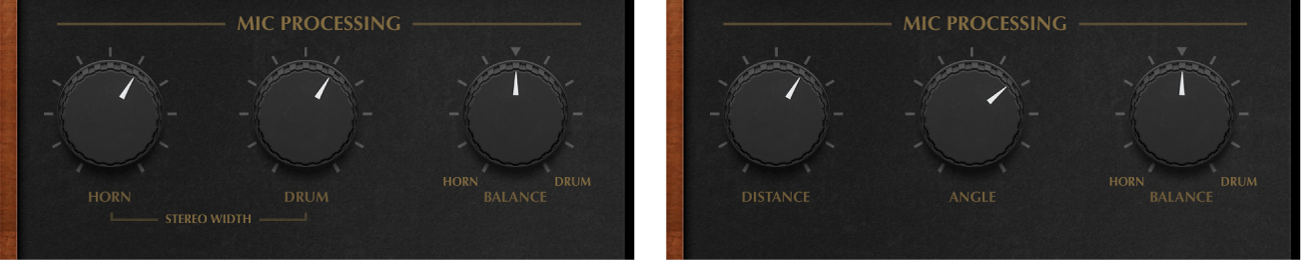

Mic processing parameters
Mic Position switch: Choose either the front or rear position for the virtual microphone. See Logic Pro Rotor Cabinet effect microphone types.
When Real Cabinet is chosen in the Type pop-up menu:
Horn knob: Set the stereo width of the Horn deflector microphone.
Drum knob: Set the stereo width of the Drum deflector microphone.
When other cabinets are chosen in the Type pop-up menu:
Distance knob and field: Determine the distance of the virtual microphones (the listening position) from the emulated speaker cabinet. Turn to the right for a darker and less defined sound.
Angle knob and field: Define the stereo image, by changing the angle of the simulated microphones between 0 and 180 degrees.
Balance knob and field: Set the balance between the horn and drum microphone signals.
Thanks for your feedback.
