Logic Pro Match EQ parameters

Match EQ offers the parameters described in this section.

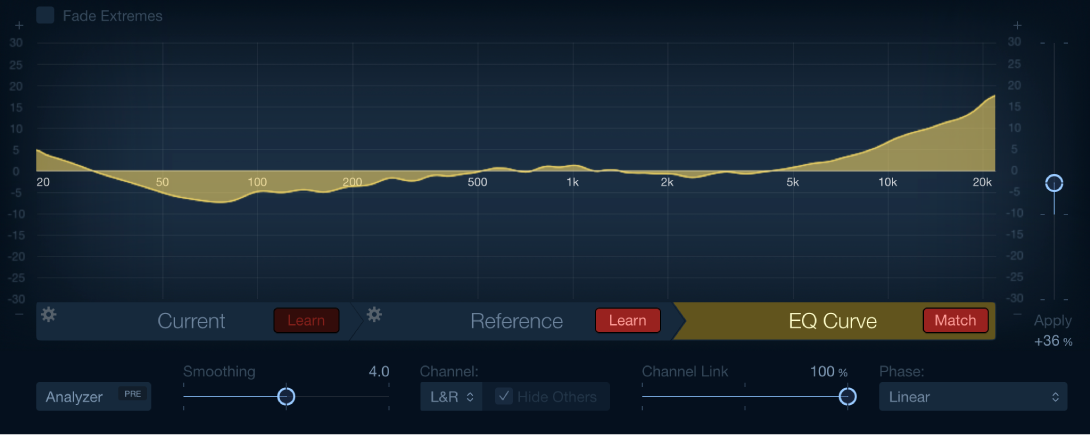

Figure. Match EQ window.

Match EQ parameters

  • Fade Extremes checkbox: Select to set an automatic high cut and low cut threshold. Matching signals above or below these thresholds are slowly faded to zero.

  • Main display: Displays the filter curve created by matching the template to the current material. You can also edit the filter curve directly (see Edit the Logic Pro Match EQ filter curve).

  • Scale display: Drag the scale to set the 0 dB reference line and scaling in the main display.

  • Mode buttons: Set the information shown in the graphic display. Choices are:

    • Current: Displays the frequency curve for the audio learned as current material. This is shown in green.

    • Reference: Displays the learned frequency curve template for the source file. This is shown in purple.

    • EQ Curve: Displays the filter curve created by matching the template and the current material. This is shown in yellow.

  • Action menu: Choose and execute commands from the Current or Reference Action menu.

    • Clear: Clears the Current Material Spectrum or Reference Spectrum.

    • Copy: Copies the Current Material Spectrum or Reference Spectrum to the Clipboard.

    • Paste: Pastes the Current Material Spectrum or Reference Spectrum from the Clipboard.

    • Load: Loads the Current Material Spectrum or Reference Spectrum from a setting file.

    • Generate: Creates a Current Material Spectrum or Reference Spectrum from an audio file.

  • Current Learn button: Start or stop the process of learning the frequency spectrum of the project you want to match with the source file or input.

  • Reference Learn button: Start or stop the process of learning the frequency spectrum of the source file or input.

  • EQ Curve Match button: Match the frequency spectrum of the current material to that of the template (source) file.

  • Analyzer button: Turn the Analyzer on or off. Play the audio signal and watch the graphic display to identify peaks and low level parts of the frequency spectrum.

  • Pre/Post button: Choose whether the Analyzer looks at the signal before (Pre) or after (Post) the filter curve is applied.

  • Smoothing slider and field: Set the amount of smoothing for the filter curve, using a constant bandwidth set in semitone steps. A value of 0.0 has no impact on the filter curve. A value of 1.0 means a smoothing bandwidth of one semitone. A value of 4.0 means a smoothing bandwidth of four semitones (a major third). A value of 12.0 means a smoothing bandwidth of one octave, and so on.

    Note: Smoothing has no effect on any manual changes you make to the filter curve.

  • Channel pop-up menu: Click to determine if separate curves are displayed by the Analyzer. Choose L&R for stereo, or an individual L or R channel. In surround instances, choose All channels or an individual channel. Changes to the filter curve affect the chosen channel if a single channel is selected.

    Note: The Hide Others and Channel Link parameters are disabled when you use the effect on a mono channel.

  • Hide Others checkbox: Hide or show other channels when an individual channel is chosen in the Channel pop-up menu. The visible impact of this parameter is directly tied to the Channel Link slider value.

    Note: The Hide Others parameter is disabled when you use the effect on a mono channel.

  • Channel Link slider and field: Refine settings made with the Channel pop-up menu.

    • When set to 100%, all channels are represented by a common EQ curve.

    • When set to 0%, a separate filter curve is displayed for each channel (chosen with the Channel pop-up menu).

    • Settings between 0 and 100% blend these values with your filter curve changes for each channel. This results in a hybrid curve.

      Note: The Channel Link parameter is disabled when you use the effect on a mono channel.

  • Phase pop-up menu: Choose the operational principle of the filter curve.

    • Linear: Prevents processing from altering the signal phase, but latency is higher.

    • Minimal: Alters the signal phase (slightly), but latency is reduced.

    • Minimal, Zero Latency: Adds no latency, but has a higher CPU overhead than the other options.

  • Apply slider and field: Determine the impact of the filter curve on the signal.

    • Values above 100% magnify the effect.

    • Values below 100% reduce it.

    • Negative values (−1% to −100%) invert the peaks and troughs in the filter curve.

    • A value of 100% has no impact on the filter curve.

  • LFE Handling buttons (Extended Parameters area): In surround instances, click to process or bypass the LFE channel.
