Logic Pro Ultrabeat Step grid overview
The Step grid displays sequence steps on two rows. The steps shown in these rows correspond to the sound that is currently selected in the Assignment area. Choosing a different sound switches the sequencer display to show the rows that correspond to the newly selected sound.

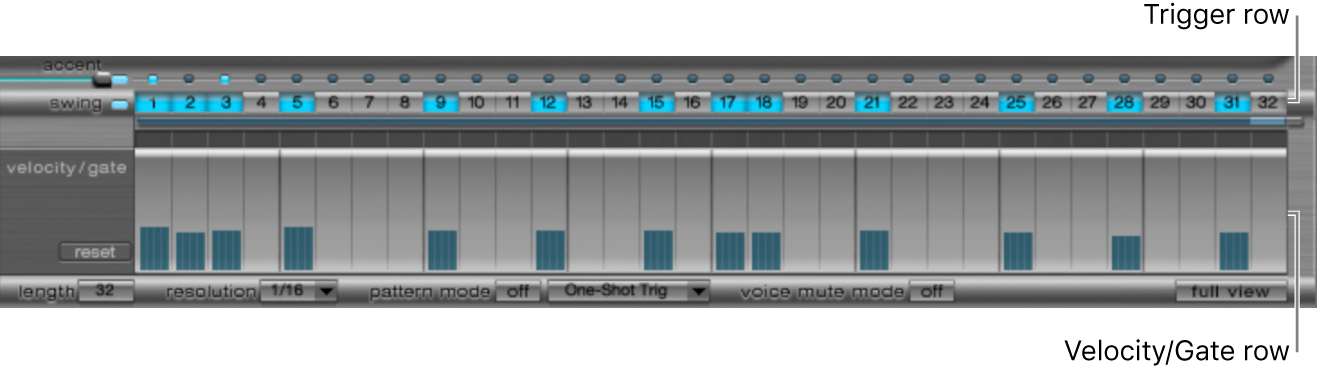

The Step grid area contains two rows, each with 32 fields (steps).
Trigger row: Click a button to activate or deactivate the sound on the corresponding beat.
Velocity/Gate row: Sets the length (gate time) and velocity of steps entered in the Trigger row. Both parameters are displayed as a single graphical bar.
The bar height represents the velocity.
The bar length indicates the note length.
