Logic Pro Sculpture Jitter generators
Many sounds can benefit from small, random modulations to parameters. These can emulate the subtle variations that occur when particular instruments are played.
The two jitter generators are special LFO sources that are designed to produce continuous, random variations—such as those of smooth bow position changes. The jitter generators are equivalent to general purpose LFOs set to a noise waveform.
Note: Jitter modulation of pickup positions as the target produces great chorus-like effects.

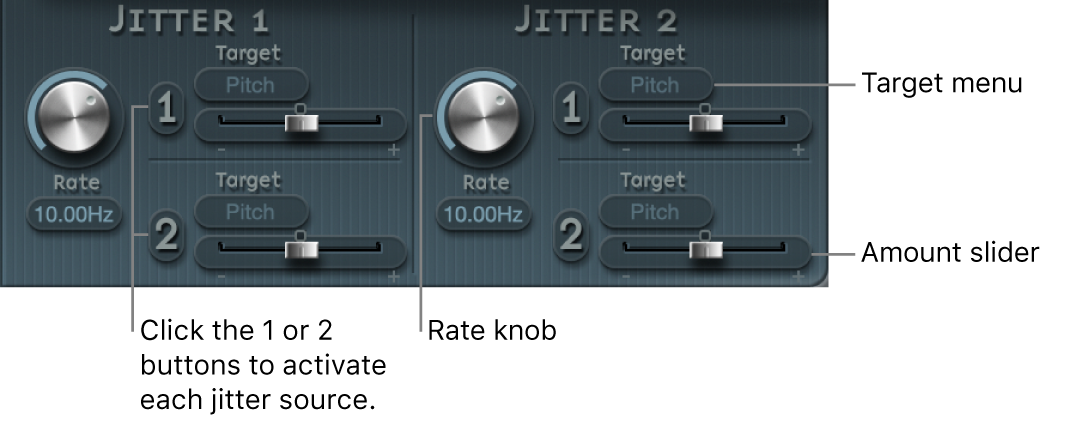

Jitter generator parameters
Rate knobs and fields: Set the speed of the modulation (jitter) signal for each jitter generator.
Jitter 1/2 On/Off buttons: Turn each jitter generator on or off, independently.
Target 1/2 pop-up menus: Choose modulation targets 1 and 2, for each jitter generator.
Amount 1/2 sliders: Determine the amount of modulation for each jitter source.
