Logic Pro Multipressor display parameters

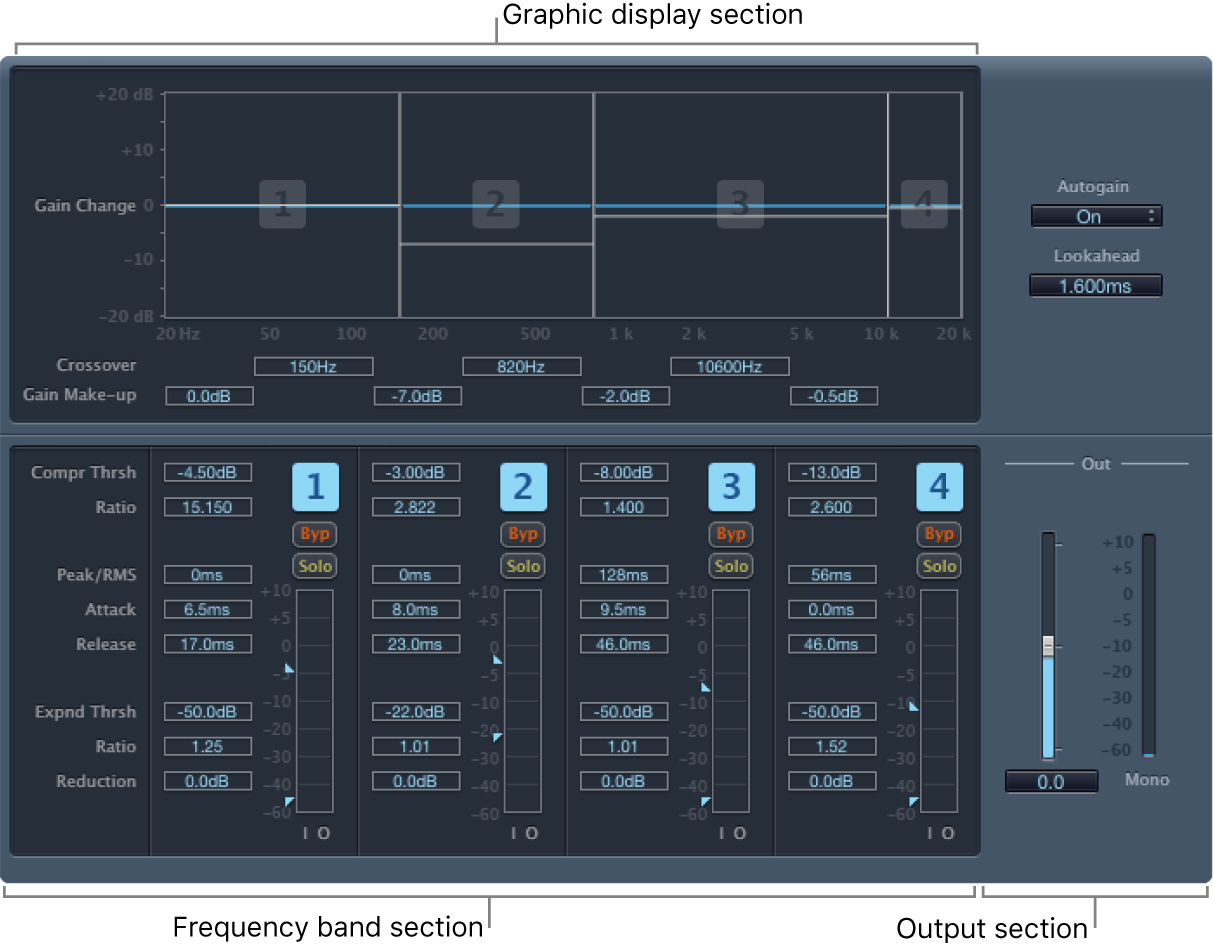

Multipressor parameters are grouped into three main areas: the graphic display in the upper section, the set of controls for each frequency band in the lower section, and the output parameters at the right.
Display parameters
Graphic display: View and adjust the frequency and gain for each frequency band. The amount of gain change from 0 dB is indicated by blue bars. The band number appears in the center of active bands. You can adjust each frequency band in the following ways:
Drag the horizontal bar up or down to adjust the gain makeup for that band.
Drag the vertical edges of a band to the left or right to set the crossover frequencies, which adjusts the overall band frequency range.
Crossover fields: Drag to set the crossover frequency between adjacent bands.
Gain Make-up fields: Drag to set the amount of the gain make-up for each band.
