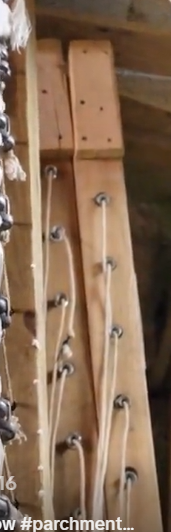

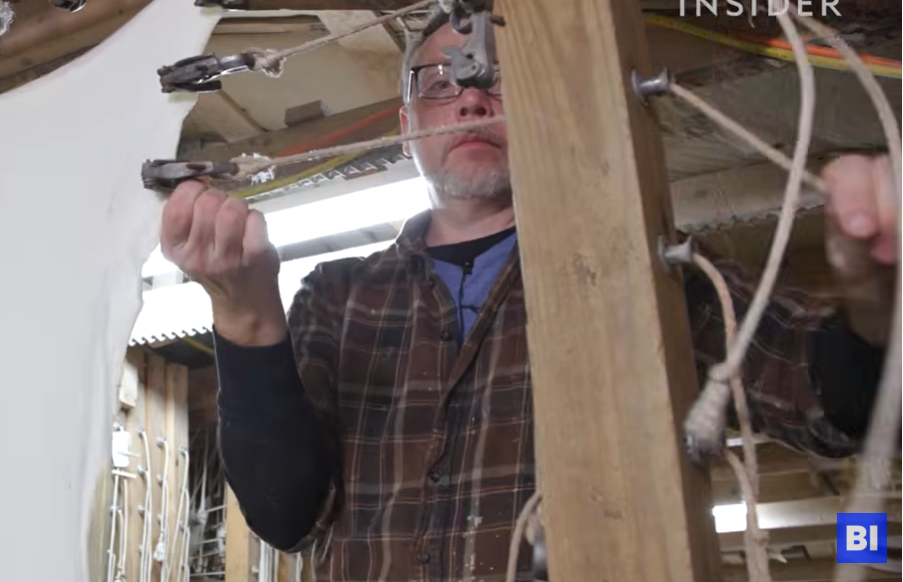

in this video on parchment making there are ropes which he pulls to tighten and they stay tight, how does that work?
how is that done?
$\begingroup$
$\endgroup$
1
New contributor
hazoriz is a new contributor to this site. Take care in asking for clarification, commenting, and answering.
Check out our Code of Conduct.
-
$\begingroup$ the closest thing i found is amazon.com/dp/B082YS61HB and amazon.com/dp/B0GSS67B1D – or Rope Grab $\endgroup$hazoriz– hazoriz2026-07-20 19:20:54 +00:00Commented 22 hours ago
Add a comment
|
2 Answers 2
$\begingroup$
$\endgroup$
3
I was thinking along the same lines as @SolarMike and I've never seen them either.
I suspect that they are designed to slip if the rope tension increases too much. In the video application, the animal skin might shrink as it dries out and a non-slip tensioning system could cause the skin to rip.
-
$\begingroup$ it seems you are right about your image, but i disagree regarding "designed to slip" you can see other ways this is done where there clearly is no "designed to slip" $\endgroup$hazoriz– hazoriz2026-07-21 10:35:51 +00:00Commented 7 hours ago
-
-
$\begingroup$ I don't understand... how does this thing keep the tension on the rope? $\endgroup$ConnieMnemonic– ConnieMnemonic2026-07-21 15:03:29 +00:00Commented 3 hours ago
-

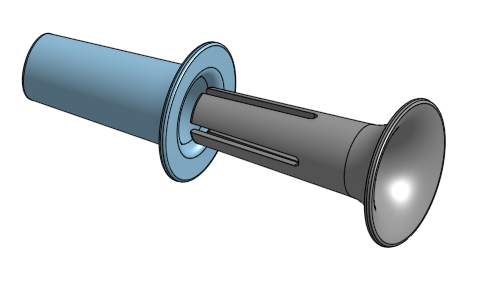

$\begingroup$ @ConnieMnemonic, there's a taper on the two parts. If the rope is pulled to the right the inner disengages from the outer, the jaws open and the rope is released. If the inner is pushed into the outer the jaws will close and bite the rope. Pulling on the rope will then increase the 'bite'. I've never seen one so I don't know if there would be barbs or some other feature to increase the bite. $\endgroup$Transistor– Transistor2026-07-21 15:32:50 +00:00Commented 2 hours ago
$\begingroup$
$\endgroup$
The metal "tubes" are likely split on the hidden ends and they slide into a cone in the metal bush.
The tension in the rope, or cord, causes the split ends to clamp down on the cord and so hold tension.
Never seen one but that is a common method used, similar to collets and tapers.
