Write and draw in documents with Markup on iPhone

In supported apps, such as Notes and Photos, you can use the Markup tools to draw and sketch in your documents. You can also use the Markup tools to annotate screenshots, PDFs, and more.

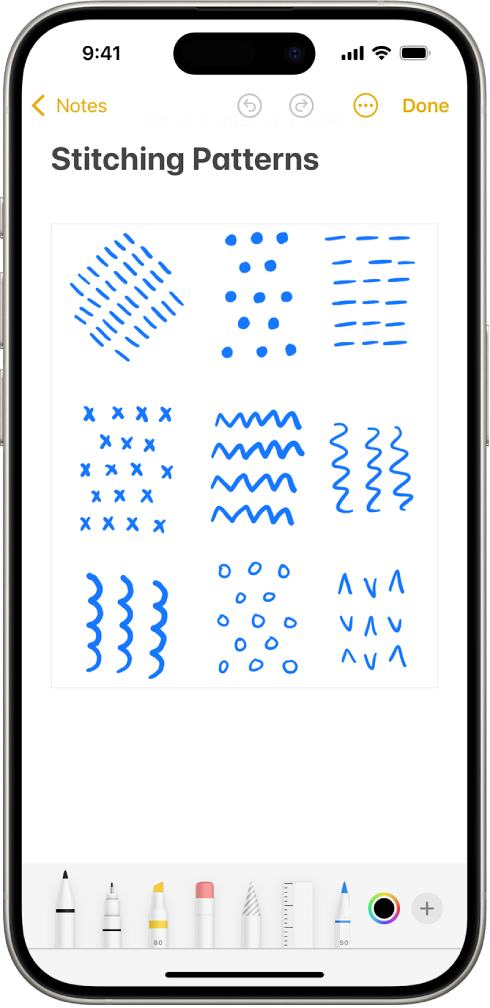

A note is open in the Notes app, and the Markup toolbar is open at the bottom of the screen. The Markup tools shown from left to right are: the Pen, Mono line, Marker, Eraser, Lasso, Ruler, and Pencil, followed by the Color Picker button and the Add button.

Write and draw

  1. In a supported app, tap the Markup button or Markup.

  2. In the Markup toolbar, tap the pen, marker, or pencil tool, then write or draw with your finger.

    While drawing, do any of the following:

    • Change the line weight: Tap the selected drawing tool in the toolbar, then tap an option.

    • Change the opacity: Tap the selected drawing tool in the toolbar, then drag the slider.

    • Change the color: Tap the Color Picker button in the toolbar, then tap Grid, Spectrum, or Sliders to further adjust your color choice.

    • Undo: Tap the Undo button.

    • Draw a straight line: Tap the ruler tool in the toolbar, then draw a line along the edge of the ruler.

      • To change the angle of the ruler, touch and hold the ruler with two fingers, then rotate your fingers.

      • To move the ruler without changing its angle, drag it with one finger.

      • To hide the ruler, tap the ruler tool in the toolbar again.

  3. To close the Markup toolbar, tap the Markup button or Done.

Erase a mistake

Tap the eraser tool in the Markup toolbar in a supported app, then do one of the following:

  • Erase with the pixel eraser: Scrub over the mistake with your finger.

  • Erase with the object eraser: Touch the object with your finger.

  • Switch between the pixel and the object erasers: Tap the eraser tool again, then choose Pixel Eraser or Object Eraser.

Note: If you don’t see the Markup toolbar, tap the Markup button or Markup. If the toolbar is minimized, tap its minimized version.

Move Markup objects

  1. In the Markup toolbar, tap the lasso tool (between the eraser and ruler tools), then use your finger to drag around the elements you want to move.

    Note: If you don’t see the Markup toolbar in a supported app, tap the Markup button or Markup. If the toolbar is minimized, tap its minimized version.

  2. Lift your finger.

  3. Touch the selected element, then drag it to a new location.

  4. Tap the screen to turn off the lasso.

See alsoUse Markup to add text, shapes, stickers, and more to documents on iPhoneFill out forms, sign documents, and create signatures on iPhone
