Logic Pro Ultrabeat global sequencer controls
The following parameters apply globally to all patterns.

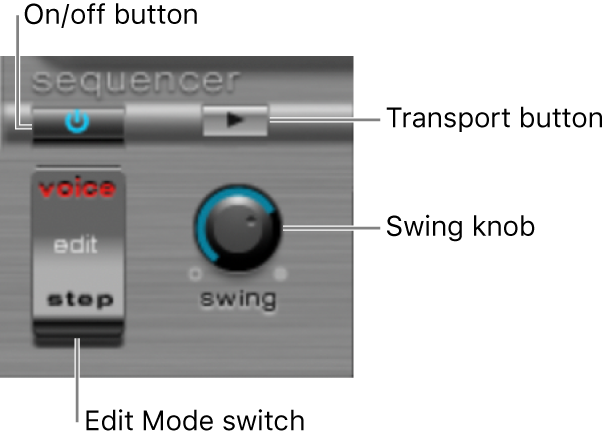

Global sequencer parameters
On/Off button: Turn the step sequencer on or off.
Edit mode switch: Select either Voice or Step mode.
Voice mode (default): In Voice mode, editing the parameters of a drum sound changes the drum sound itself.
Step mode: In Step mode, you can automate a the parameters of a sound from one step to the next. See Logic Pro Ultrabeat step automation overview.
Transport button: Start and stop the sequencer pattern. The step sequencer is always synchronized with the host application tempo.
Note: If the Transport button is blue, the step sequencer interprets incoming MIDI notes between C-1 and B0 as performance information. See Logic Pro Ultrabeat sequencer MIDI control.
Swing knob: Rotate to set the swing intensity for all sounds that have the Swing function turned on. See Use the Logic Pro Ultrabeat swing function.
