Route audio via send effects in Logic Pro for Mac

You use send effects when you want to isolate effect plug-ins from a channel strip’s signal flow, or when you want to use the same effect on more than one channel strip. By creating a send, you split the channel strip’s signal. The channel strip’s main signal continues its route to the chosen output. The other part of the signal is routed down a parallel path, via a bus to an aux channel strip. You use the Send Level knob to control the amount of signal that is sent via the bus. This is known as parallel routing. You can route the signal back into the main signal flow at a later point, or you can output the signal from the aux channel strip.

The primary advantage of this approach over routing via insert effects is efficiency. This method allows multiple channel strips to be processed by one inserted effect, which saves vast amounts of processing power (and time) when compared to the alternative of inserting the same effect directly into multiple channel strips. Another bonus is that you can quickly switch between wet and dry versions of all channel strips that are sent to an aux channel strip, by simply bypassing the effect on the aux. Similarly, you can completely change the effects configuration for multiple sent channel strips by choosing different effects for the aux channel strip.

The following image illustrates a channel strip routed to multiple aux channel strips via sends—with reverb, chorus, and delay effects assigned to aux channel strips 1, 2, and 3, respectively.

Figure. Channel strip with three effect plug-ins routed in parallel, via sends.

The channel strip signal is split and routed to three separate effects, one on each aux channel strip. These three independent signals are then sent back from the respective aux channel strips and combined into an output stream from the original channel strip. You can create up to 12 sends on each audio, instrument, or aux channel strip.

You use the Send pop-up menu to change where in the channel strip signal the send occurs, and to set the destination for the parallel routing of the send. You have three options for where the send can occur in the signal flow:

  • Post Pan: The signal is sent after the fader and the Pan knob; the send signal is affected both by adjustments to channel strip volume and by pan adjustments.

  • Post Fader: The signal is sent after the fader but before the Pan knob; the send signal is affected by volume adjustments but not pan adjustments.

  • Pre Fader: The signal is sent before the fader and Pan knob; the send signal is affected by neither volume nor pan adjustments.

Open the Send pop-up menu

Use the Send pop-up menu to change where the send occurs, and to set the destination for the send.

  • In Logic Pro, click the Send knob in a channel strip to open the Send pop-up menu.

    Figure. Send menu.

Choose a destination for a send

  • In Logic Pro, choose a bus from the submenu of the Send pop-up menu in a channel strip.

    Figure. Assigning a bus to a send.

If you have named the aux channel strip that a bus is sending to, the name appears beside the bus number.

Highlight the destination of a send

  • In Logic Pro, Shift-click the send in a channel strip.

    Any aux channel strips to which the send is routing flash three times.

Note: Double-clicking a send doesn’t affect the current selection.

Set a send to Post Pan, Post Fader, or Pre Fader send mode

  • In Logic Pro, choose one of the three signal flow options for the send from the Send pop-up menu.

    Figure. Choosing a signal flow option for the Send knob.

    • Post Pan: The signal is sent after the fader and the Pan knob; the send signal is affected by both channel strip volume and pan adjustments. When a send is Post Pan the Send knob ring is green.

    • Post Fader: The signal is sent after the fader but before the Pan knob; the send signal is affected by volume adjustments but not pan adjustments. When a send is Post Fader the Send knob ring is blue.

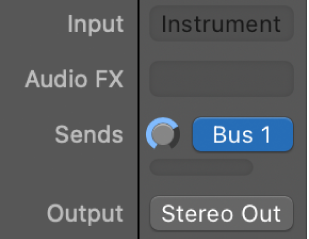

    • Pre Fader: The signal is sent before the fader and Pan knob; the send signal is not affected by volume or pan adjustments. When a send is Pre Fader the Send knob moves to the left of the Send pop-up menu, and the Send knob ring is blue.

      Figure. Pre fader send knob.
