Alchemy source master controls in Logic Pro for Mac

Source components are shown only in advanced view. Click the Advanced button to switch to advanced view.

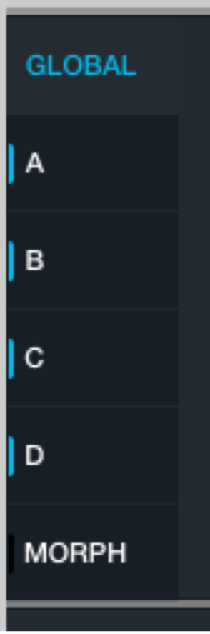

Figure. Global, A, B, C, D, and Morph buttons.

At the left of the source section are six buttons: Global, A, B, C, D, and Morph. Indicators to the left of each button denote the following: blue = active source, green = morphing turned on for the source.

Source mode buttons: Click Global to view all sources. Click A, B, C, or D to view a single source. Click Morph to use morph mode. Option-click A, B, C, or D to view and solo the source.

When the Global button is on, the source master controls are displayed. The main filter and master voice controls are also displayed when Global is active. See Alchemy main filter controls in Logic Pro for Mac and Alchemy master and voices section in Logic Pro for Mac.

When the A, B, C, or D button is on, the subpage controls for the selected source are displayed. See Alchemy source subpage controls in Logic Pro for Mac.

When the Morph button is on, source morphing parameters are displayed. See Alchemy morph controls in Logic Pro for Mac.

The source select field in each source does double duty as a level meter that shows the current output level from the source into the main filter section. When the output level exceeds 0 dB, it clips the input of the main filter section, and the level meter turns red. This is useful for quickly determining the cause of unwanted distortion.

Note: Sources can also be routed directly to the Effects section, bypassing the main filters. The level meter is shown regardless of the source output destination.

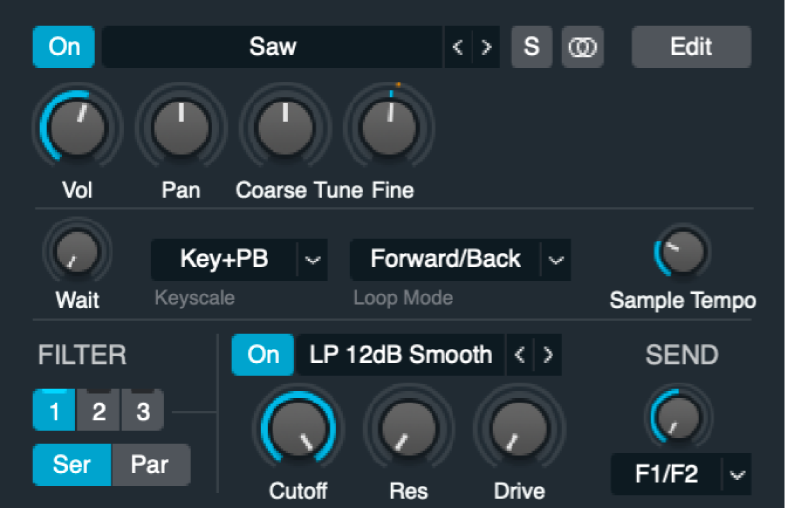

Figure. Source master controls.

Source master controls

  • A/B/C/D buttons: Turn the source on or off. Option-click to solo a source.

  • Click the Previous and Next buttons (the arrows) to step through available waveform data. This field also acts as a level meter during playback.

    • Import Audio: Import audio data into the source. You can also drag and drop audio from Logic Pro windows (Main window, Loop Browser, File Browser), you can use the Alchemy Import browser in Logic Pro for Mac, or you can drag and drop audio files from the Finder.

    • Load VA: Load waveform data into the VA element (Virtual Analog synthesis engine) from categorized waveform type submenus. This automatically turns on the VA engine and turns off all other synthesis engines for this source. See Alchemy VA element controls in Logic Pro for Mac.

    • Load Source: Open a dialog where you can load source (SRC) data from ~/Music/Audio Music Apps/Plug-Ins Settings/Alchemy/Libraries/Sources/.

      SRC file format data includes all source control settings and a reference to any loaded or imported audio data. Source control modulations are not loaded as part of the SRC file.

    • Save Source: Open a dialog where you can write source data to disk in SRC file format in the ~/Music/Audio Music Apps/Plug-Ins Settings/Alchemy/Libraries/Sources/ folder.

      Saved data includes all source control settings and a reference to any loaded or imported audio data. Source control modulations are not saved as part of the SRC file.

    • Copy Source: Copy source data to the Clipboard. This is useful for duplicating the content and settings of one source into another. Copied data includes settings of all source controls and a reference to loaded or imported audio data. Source control modulations are also copied.

    • Paste Source: Paste source data from the Clipboard.

    • Clear Source: Reset the source to the default state.

    • Randomize Source: Apply random variations to source controls, depending on active elements in the source.

    • Swap With Source: Choose a source from the submenu to swap with the current source. This allows you to quickly experiment with the parameter settings of the two swapped sources.

  • Vol knob: Set the source output level (-inf dB to 0 dB).

  • Tune knob: Tune the source in semitone increments. A further Fine Tune control is available on each source subpage. See Alchemy source subpage controls in Logic Pro for Mac.

  • Pan knob: Set the source output position in the stereo field. This parameter works as a pan control if the source Stereo button (next to the Edit button) is off or as a left/right balance control if the source Stereo button is on. The behavior of the Pan control changes when wide unison mode is turned on. See Alchemy wide unison mode.

  • Send knob: Set the source output balance (post source filters, if used) sent to the destinations specified with the Send pop-up menu.
