Logic Pro ES2 filter overview
ES2 features two discrete, and different, filters.
Filter 1 can operate as a lowpass, highpass, bandpass, band reject, or peak filter.
Filter 2 is a lowpass filter that offers variable slopes (measured in dB/octave).

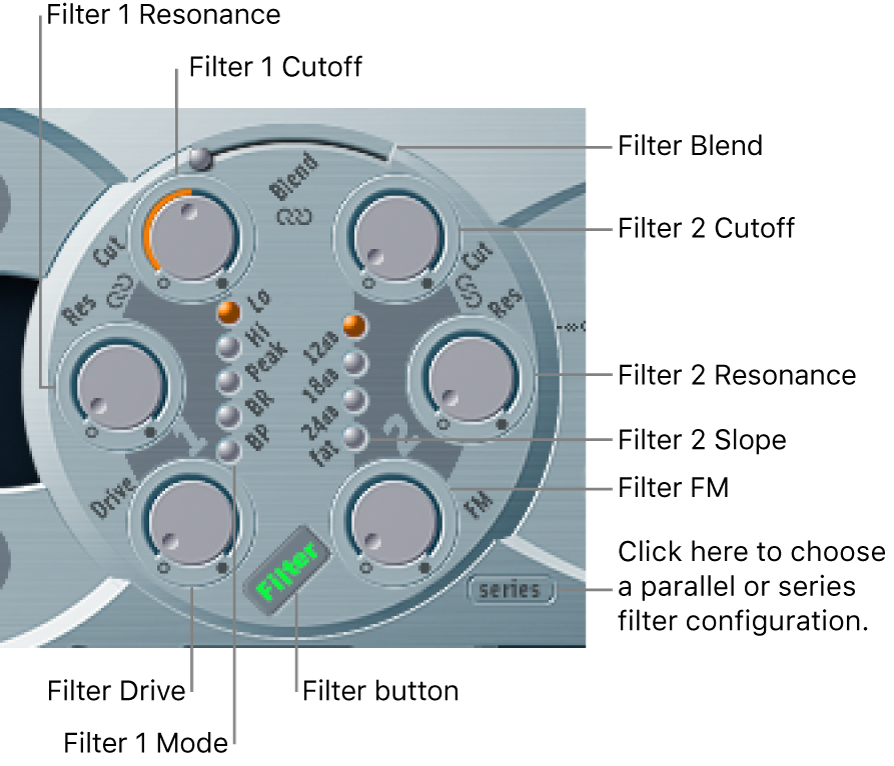

Filter parameters
Filter button: Turn the entire filter section on or off. Deactivating the filter section makes it easier to hear adjustments to other sound parameters, because the filters always heavily affect the sound. Disabling the filters also reduces processor load.
Filter Configuration button: Switch between a parallel or series filter configuration. See Change the Logic Pro ES2 filter configuration.
Filter 1 Mode buttons: Switch Filter 1 between lowpass, highpass, bandpass, band reject, or peak filter types. See Logic Pro ES2 Filter 1 modes.
Filter Blend slider: Set the balance between Filter 1 and Filter 2. See Crossfade between Logic Pro ES2 filters.
Filter 2 Slope buttons: Switch Filter 2 between different slopes. See Logic Pro ES2 Filter 2 slopes.
Cutoff and Resonance knobs: Rotate to determine the cutoff frequency and resonance behavior of each filter. See Logic Pro ES2 filter cutoff and resonance overview.
Filter Drive knob: Rotate to overdrive the filter, which affects each voice independently. See Overdrive Logic Pro ES2 filters.
Filter FM knob: Set the amount of Filter 2 cutoff frequency modulation with the oscillator 1 frequency. See Modulate Logic Pro ES2 Filter 2 frequency.
Σας ευχαριστούμε για τα σχόλια.
