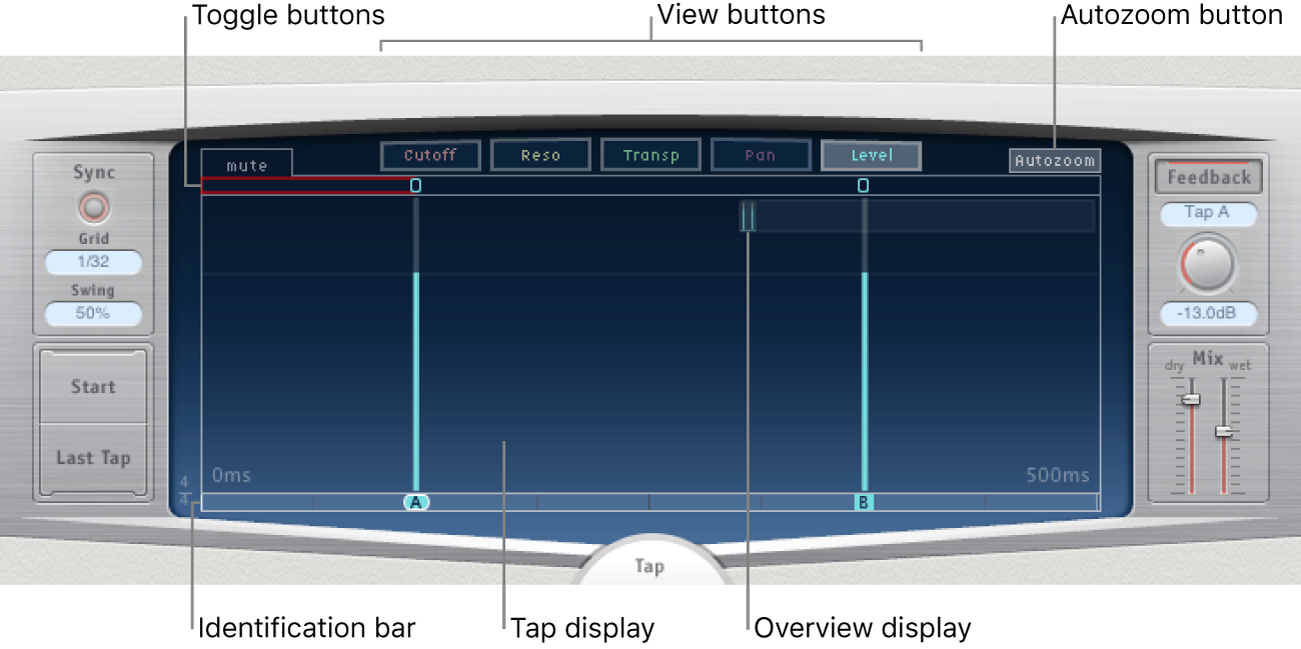

Logic Pro Delay Designer main display
The main display is used to view and edit tap parameters. You can choose the parameter to show and can quickly zoom or navigate through all taps.
Main display parameters
View buttons: Click to choose the parameter or parameters shown in the Tap display. See Use the Logic Pro Delay Designer Tap display.
Autozoom button: Zoom the Tap display out to make all taps visible. Turn Autozoom off if you want to zoom the display in (by dragging vertically in the Overview display) to view specific taps.
Overview display: Shows all taps in the time range.
Toggle buttons: Click to turn the parameters of a particular tap on or off. The parameter being toggled is selected with the view buttons. The label at the left of the Toggle bar indicates the parameter. See Use the Logic Pro Delay Designer Tap display.
Tap display: Represents each tap as a shaded line. Each tap contains a bright bar (or dot for stereo panning) that indicates the value of the parameter. You can directly edit tap parameters in the Tap display area. See Edit in the Logic Pro Delay Designer Tap display.
Identification bar: Shows an identification letter for each tap. This also serves as a time position indicator for each tap. You can move taps backward or forward in time along this bar/timeline. See Edit Logic Pro Delay Designer taps.
