GPU-accelerated Discrete Element Method (DEM) simulation engine built on NVIDIA Warp.

Built by VeloxSim Tech Pty Ltd (www.veloxsim.com) and Sam Wong.

• Hertz-Mindlin contact model with tangential spring tracking and viscous damping
• Coulomb friction with static and dynamic coefficients
• Type C EPSD rolling resistance (elastic-plastic spring-dashpot, history-dependent)
• JKR cohesion/adhesion with configurable surface energy
• Particle size distribution (PSD) with per-particle radii, masses and inertias; effective radius / mass computed per contact
• Particle-particle collision via spatial hash grid broad-phase
• Particle-mesh collision via BVH mesh queries on arbitrary triangular meshes
• In-plane dynamics (conveyor belts) with surface velocity parameter
• Kinematic mesh motion — per-mesh linear_velocity / angular_velocity rigidly translate and rotate the geometry every timestep with BVH refit, rotational contact arm omega x (p - origin) in the wall-velocity, and friction-history rotation so contact stays frame-correct under motion
• 3D mesh import (OBJ/STL via trimesh)
• Velocity Verlet integration
• Fully GPU-resident via NVIDIA Warp kernels
• Google Turbo colormap — a rainbow-style colormap designed to improve upon Jet by being smoother and perceptually uniform

• Python 3.10+
• NVIDIA GPU with CUDA support
• NVIDIA Warp
• NumPy, trimesh, matplotlib (for plots)

pip install warp-lang numpy trimesh matplotlib

import numpy as np
from veloxsim_dem import Simulation, SimConfig, create_plane_mesh

config = SimConfig(
    num_particles=5000,
    particle_radius=0.005,
    particle_density=2500.0,
    young_modulus=1e7,
    poisson_ratio=0.3,
    restitution=0.5,
    friction_static=0.5,
    friction_dynamic=0.4,
    friction_rolling=0.01,
    cohesion_energy=0.0,
    dt=1e-5,
    gravity=(0.0, 0.0, -9.81),
)

sim = Simulation(config)
positions = np.random.uniform(-0.1, 0.1, (5000, 3)).astype(np.float32)
positions[:, 2] = np.linspace(0.01, 0.5, 5000)
sim.initialize_particles(positions)

floor = create_plane_mesh(origin=(0, 0, 0), normal=(0, 0, 1), size=2.0)
sim.add_mesh(floor)

for i in range(1000):
    sim.step()

pos = sim.get_positions()      # (N, 3) numpy array
ke = sim.get_kinetic_energy()  # total KE in Joules

All examples live under examples/<name>/. Each example is self-contained — run the script from anywhere, and it locates the engine (veloxsim_dem.py) and the shared hopper viewer (hopper_viewer.py) at the repo root automatically.

Simulates bulk material flow through an STL transfer chute geometry with dynamic particle insertion (feed conveyor, impact plate, chute, receiving conveyor, containment skirts).

python examples/chute/test_stl_chute.py \
  --radius 0.0225 --belt-speed 3.0 --tonnage 3000 --sim-time 10

After running, regenerate the animation viewer:

python examples/chute/chute_viewer.py

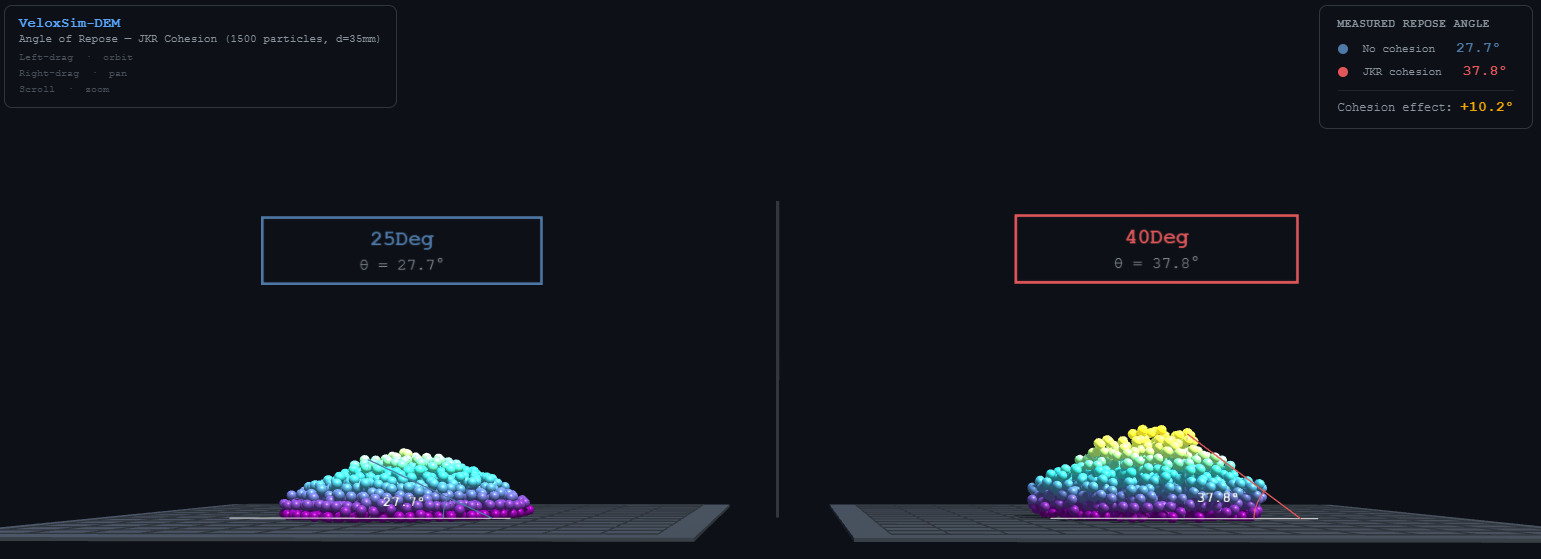

Validates JKR cohesion by measuring angle of repose using the cylinder lift method.

python examples/angle_of_repose/test_repose.py
python examples/angle_of_repose/repose_viewer.py   # generate viewer

Gravity discharge of a conical hopper used to study bulk material flow regimes (mass flow, funnel flow, ratholing, arching) as a function of material properties and geometry. Uniform particle radius. Includes an interactive 3D viewer with a Layers mode that colours each particle by its initial vertical layer — the classic coloured-sand technique used in bulk materials handling research, so the layer deformation reveals the flow pattern at a glance.

python examples/hopper_discharge/demo_hopper.py \
  --hopper-stl examples/hopper_discharge/STL/Hopper2.stl \
  --plug-stl   examples/hopper_discharge/STL/plug2.stl \
  --radius 0.0175 \
  --sim-time 15

See docs/HOPPER.md for full documentation, material-property studies, and viewer controls.

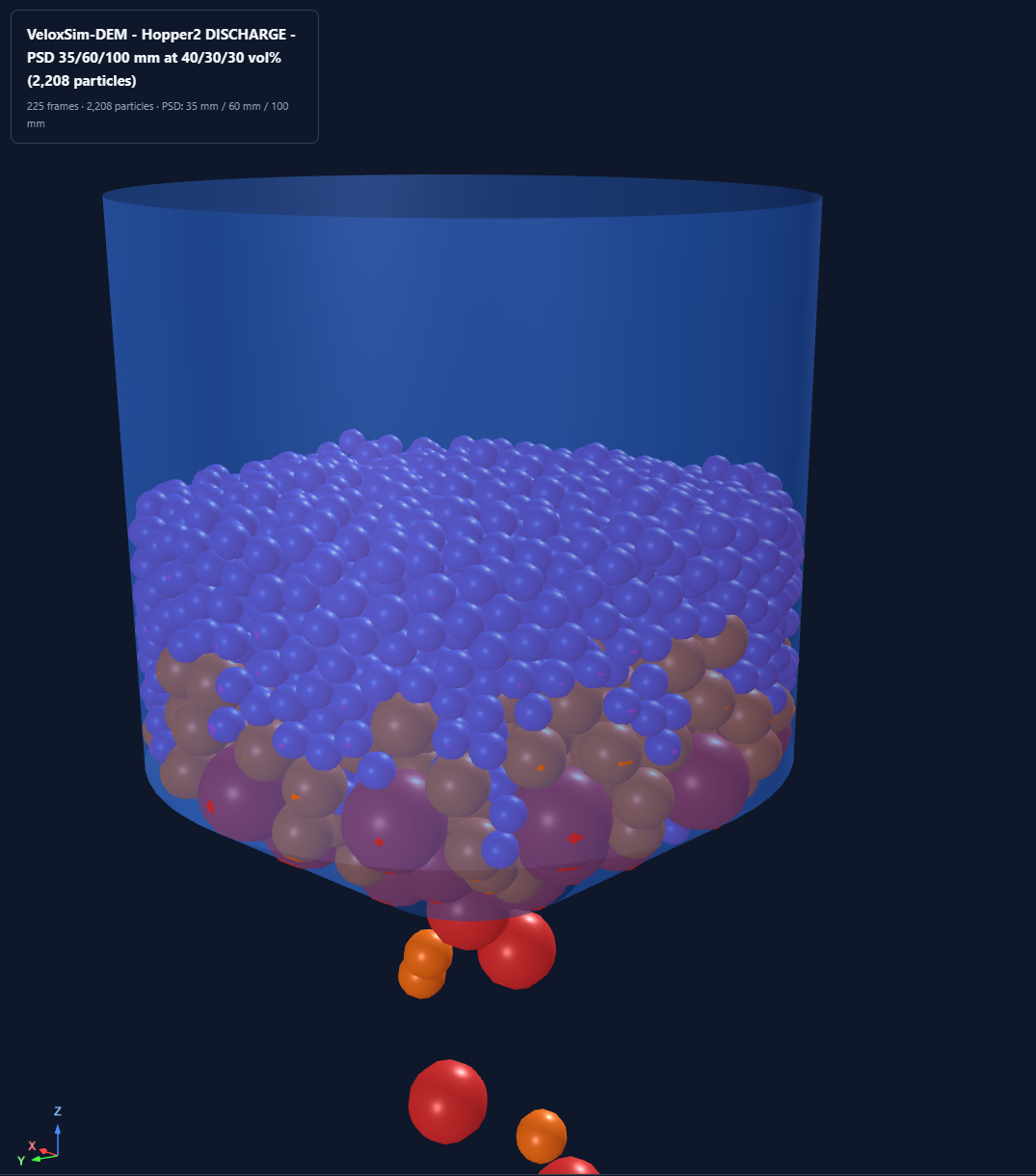

Two-phase workflow for a hopper filled with a multi-class particle size distribution (35 mm / 60 mm / 100 mm radii at 40 / 30 / 30 vol %). Particle counts are back-calculated from a 2000 kg/m³ bulk density and the hopper's internal volume, so the fill matches a physically realistic packing rather than an arbitrary grid size. Phase 1 settles the bed with plug2.stl closing the outlet; Phase 2 removes the plug and discharges to a floor below. Produces a self-contained Three.js viewer with correct per-particle radii and PSD-aware colouring.

# Phase 1 — settle the bed
python examples/psd_hopper/test_psd_hopper.py

# Phase 2 — discharge + interactive HTML viewer
python examples/psd_hopper/discharge_html.py

See docs/PSD_HOPPER.md for the full workflow, the back-calculation of particle counts, viewer controls, and the observed intermittent-arching flow pattern.

Particles tumble inside a horizontally-spinning drum fitted with six radial lifter blades. Demonstrates per-step quaternion integration of the drum pose, the rotational contact arm omega x (p - origin) in the wall-velocity, and friction-history rotation so tangential springs remain frame-correct as the geometry spins. The lifters carry particles up the wall and dump them across the bed; settled kinetic energy is ~7.7x that of a smooth-wall drum at the same rpm.

python examples/rotating_drum/example_rotating_drum.py

See docs/ROTATING_DRUM.md for the full write-up of the new kinematic-geometry API (per-mesh linear_velocity / angular_velocity / origin, set_mesh_angular_velocity, get_mesh_poses), the per-step kernel pipeline, and the physics validated by the example.

All simulation parameters are set via SimConfig:

The cohesion_energy_wall parameter allows independent control of particle-wall adhesion. This is useful for modelling scenarios where wall material properties differ from bulk material, such as sticky material on smooth steel walls:

config = SimConfig(
    cohesion_energy=5.0,       # particle-particle: 5 J/m^2
    cohesion_energy_wall=0.5,  # particle-wall: 0.5 J/m^2 (smooth walls)
)

When cohesion_energy_wall is None (default), it falls back to cohesion_energy for backward compatibility.

The Hertz-Mindlin model computes:

• Normal force: F_n = (4/3) E* sqrt(R*) delta_n^(3/2)
• Normal damping: F_nd = -2 sqrt(5/6) beta sqrt(S_n m*) v_n
• Tangential force: F_t = -S_t delta_t (accumulated incrementally)
• Coulomb limit: |F_t| <= mu_s |F_n| (static), capped at mu_d |F_n| (kinetic)
• Rolling resistance: Type C EPSD with plastic cap at mu_r R* |F_n|
• Cohesion: F_c = 1.5 pi gamma R* (JKR pull-off with linear ramp beyond contact)

See LICENSE.
